Stainless Steel Hand Winches

SWSS1200S

PRICE INCLUDES FREE SHIPPING AUSTRALIA WIDE

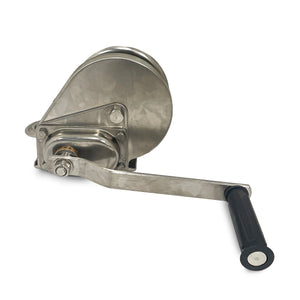

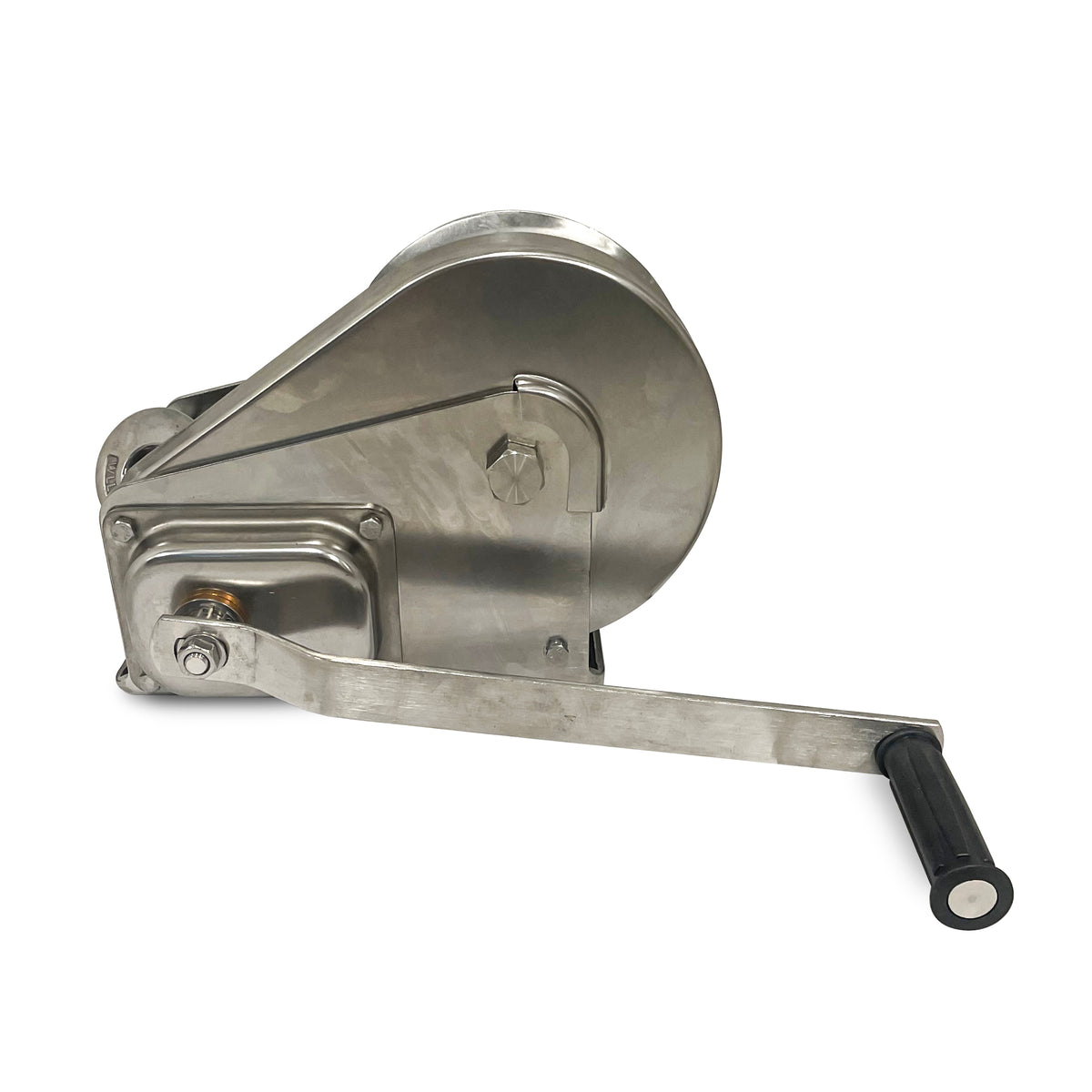

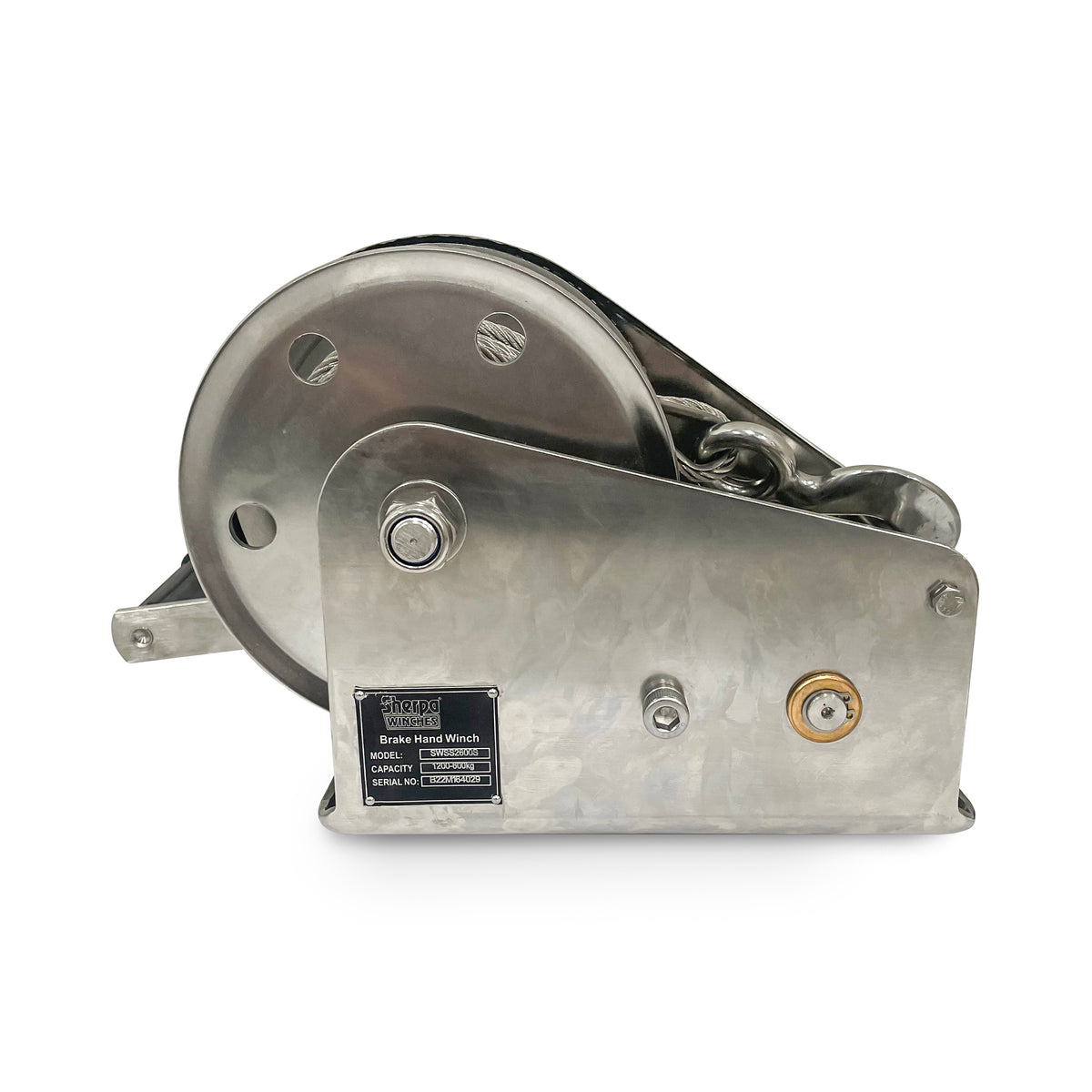

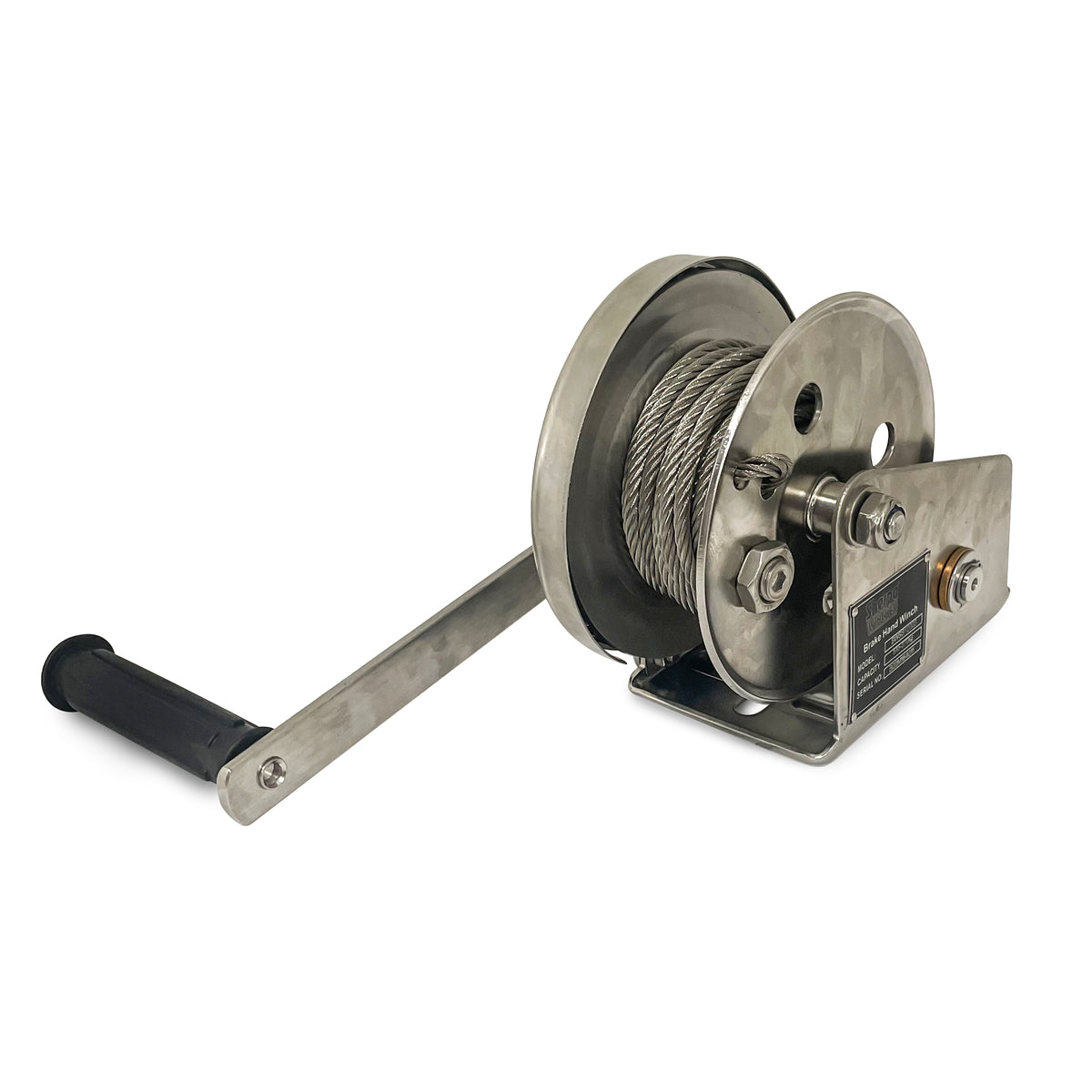

High Quality Braked Hand Winch

These winches are made from high grade 304 stainless steel and make the manual winching process a breeze. Available in a range of sizes and capacities there's a solution for your winching needs.

  • Sherpa winches have a focus on quality and invest in continuous improvement, making them the best winch solution on the market. The range of hand winches are no exception and deliver high quality as well as value for money.

    These braked hand winches are the ideal choice around salt water marine environments and have specific target applications. Whilst they can be used for a upgrade for your rusty boat trailer winch, users should note there's no disengage option and the winch brake will apply instantly when you cease turning the handle. There's no noisy ratchet clicker on these winches and they deliver smooth performance. These winches are ideal for use as a davit winch or for raising and lowering loads. The braked design makes them incredibly safe as the load won't run away from you as it's lowered. The winch will stop immediately when the handle is released thanks to the special braked design. Available in a range of sizes and ratings to suit different applications.



    Why are Sherpa winches different to the competition?

    Tried and Tested - Sherpa don't just base their winch designs on the theoretical calculations. Winches are also tested to destruction on a test bench before undergoing real world testing. What results is a robust winch design with exceptional in-house pre and post sales support.

    Tough & Durable - Sherpa winches are built to last.

    Quality gears - Sherpa gears turn smoother and feel better thanks to the high level of engineering design and quality control during manufacturing.

    Powerful- A range of solutions are available for different applications and loads.

    Simplicity - Easy to set up and operate, these winches have been designed with simplicity in mind. They are supplied ready to operate out of the box.

    Warranty and Parts - Sherpa offers a 5 Year warranty on their hand winch range.

  • Technical Details

    Specifications SWSS1200S SWSS2600S
    Pulling capacity on 1st layer 1,200 lb (545 kg)  2,600 lb (1,200 kg)
    Lifting capacity on 1st layer 594 lb (270 kg)  1,320 lb (600 kg)
    Gear Ratio 4:1 10:1
    Cable

    5m of 5mm stainless steel with hook

    5m of 8mm stainless steel with hook
    Brake
    Automatic load pressure brake makes for safe holding and lowering of load Automatic load pressure brake makes for safe holding and lowering of load
    Material
    Winch body made from A304 Stainless Steel  Winch body made from A304 Stainless Steel
    Weight ~4 kg
    ~12kg
    Warranty 5 Years 5 Years



    Winch Performance Data

    Specifications SWSS1200S SWSS2600S
    Pulling capacity on 1st layer 1,200 lb (545 kg)  2,600 lb (1,200 kg)
    Lifting capacity on 1st layer 594 lb (270 kg)  1,320 lb (600 kg)
  • Winch Owner's Manual

    Grunter Boat Winch Owner's Manual

    ATV Winch Owner's Manual

    Winch Dimensions:

    'Mustang' 9,500Lb with 28m spool

    'Brumby' 10,000Lb high speed winch

    'Colt' 12,000Lb

    'Steed' 17,000Lb with 28m spool

    'Steed' 17,000Lb with 45m spool

    'Mule' 17,000Lb dual motor winch with 45m spool

    'Stallion'  25,000Lb winch with 30m spool

    Tow Truck Winch 20,000Lb

    'Grunter' boat trailer winches (Standard & HP Models)

    'Grunter' Boat Trailer Winch Mounting Bracket

    ATV Winch 4,500Lb

    ATV Winch 4,500Lb Mounting Plate

    Winch Control Box

    Wiring Diagrams:

    Dual Motor Winch Wiring Diagram

    Winch Solenoid Wiring Diagram

    Winch Weights:

    Winch Type Other 92ft (28m) Cable 92ft (28m) Rope 100ft (30m) Rope 100ft (30m) Cable 148ft (45m) Cable 148ft (45m) Rope
    ATV Winch 4,500Lb 15lb (7 kg) X X X X X X
    9,500Lb X 57lb (26 kg) 42lb (19 kg) X X X X
    10,000Lb (High Speed) X X 50lb (23 kg) X X X X
    12,000Lb X 66lb (30 kg) 50lb (23 kg) X X X X
    17,000Lb Single Motor X 60lb (30 kg) 50lb (23 kg) X X 88lb (40 kg) 57lb (26 kg)
    17,000Lb Dual Motor X X X X X 101lb (46 kg) 71lb (32 kg)
    Tow Truck Winch 20,000Lb X 100lb (45 kg) 66lb (30 kg) X X X X
    25,000Lb X X X 68lb (31 kg) 104lb (47 kg) X X


    Cable Data:

     Winch Type Cable Type Length Cable Size
    Grunter Boat Trailer Winches (All models)

    Positive (Power)

    7m (~23ft) 50mm²

    Negative (Earth)

    3m (~10ft) 32mm²

    Control Box Cables

    Various <1m (< ~3ft) From winch to control box only.  25mm²
    Grunter Cable Upgrade (Postive cable only)

    Positive (Power)

    10m (~32ft) 50mm²

    4x4 Winches (All models)

    Mustang, Colt, Steed, Mule, Brumby, Stallion, Tow Truck winch models.

    Positive (Power)

    1.8m (~6ft) 25mm²



    Negative (Earth)

    1.8m (~6ft) 25mm²

    Control Box Cables

    Various <1m (< ~3ft) From winch to control box only.  25mm²
    4x4 Winch Cable Upgrade

    Positive (Power)

    3m (~10ft) 25mm²

    Negative (Earth)

    3m (~10ft) 25mm²
    Big Air - Air Compressors (All models)

    Positive (Power)

    3m (~10ft) 16mm²

    Negative (Earth)

    3m (~10ft) 16mm²
