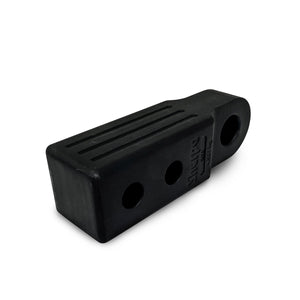

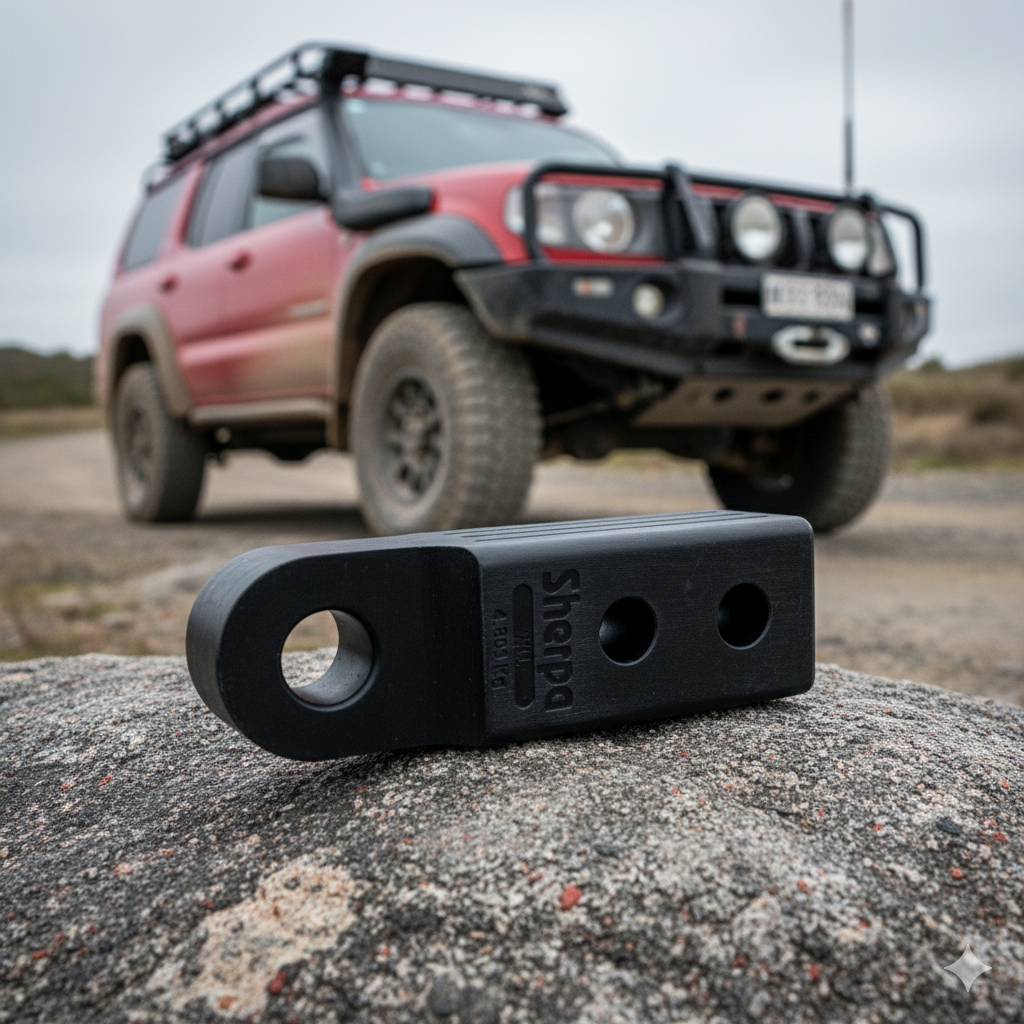

Sherpa recovery hitches are a safer alternative to use for vehicle recoveries when compared to using your tow ball. These are a highly recommended accessory for anyone going offroad.

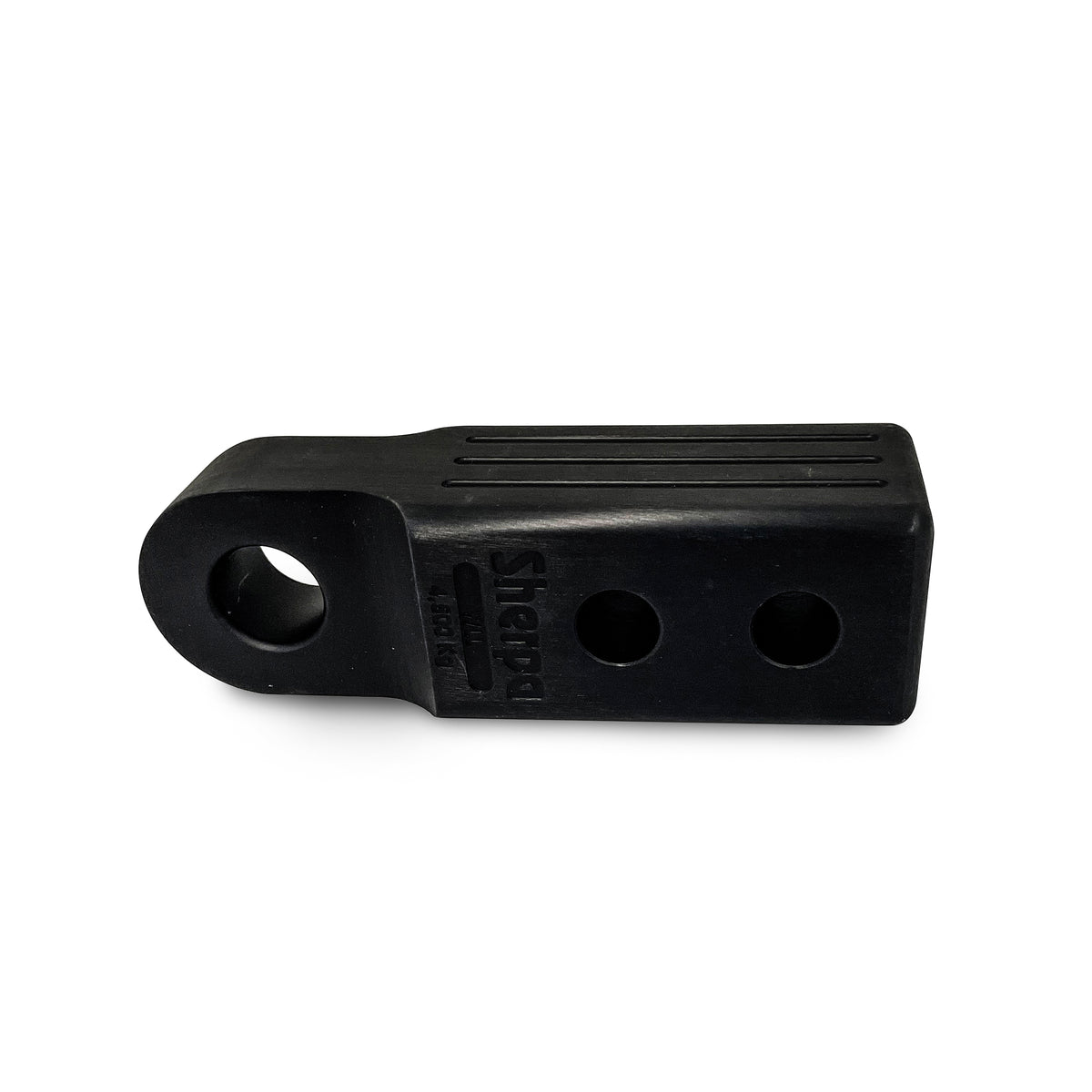

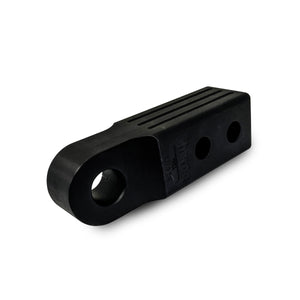

The Sherpa hitches are designed to fit common 2", 50 x 50mm vehicle receivers and offer a far safer fixing point over other commonly used options. Tow balls are not designed for snatch style recoveries and are known to break and turn into projectiles. Another common error is using the vehicles shipping tie down points as recovery points, these are not rated and can easily fail.

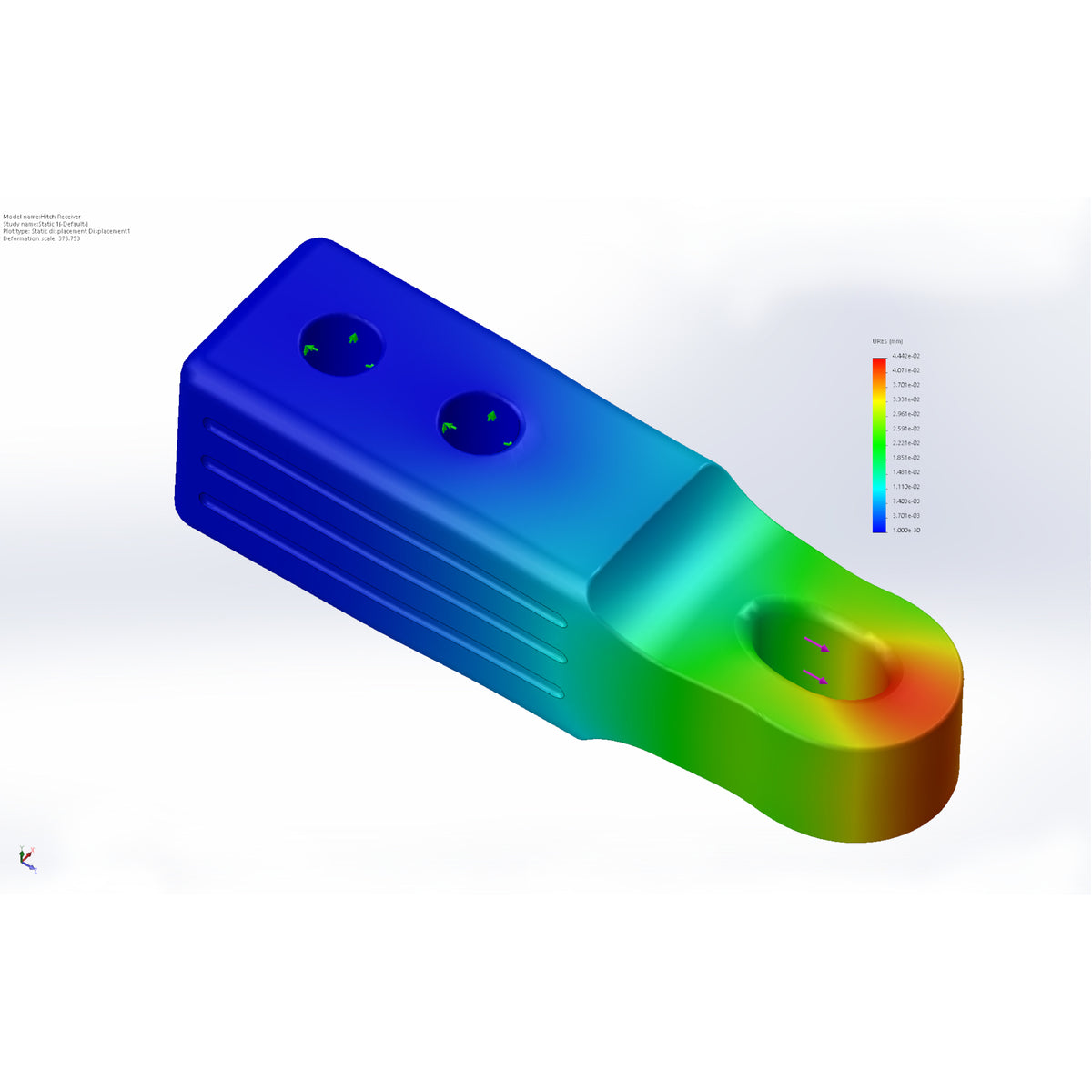

The Sherpa tow hitch has not only been computer stress modelled, it has also had full destructive testing to ensure a safer design users can rely on. The units are manufactured from strong 6061 aluminium and are finished with a hard anodizing top coat which helps to delivery greater wear resistance.
The hitch is designed with a large recovery eye and has a smooth radius meaning it can be used with both steel D shackles or soft rope shackles.
Never exceed factory receiver hitch pull rating. Always use a quality steel alloy 5/8” hitch pin. Always pull in line with the hitch, do not bind or side load the shackle
Grunter Boat Winch Owner's Manual
Winch Dimensions:
'Mustang' 9,500Lb with 28m spool
'Brumby' 10,000Lb high speed winch
'Steed' 17,000Lb with 28m spool
'Steed' 17,000Lb with 45m spool
'Mule' 17,000Lb dual motor winch with 45m spool
'Stallion' 25,000Lb winch with 30m spool
'Grunter' boat trailer winches (Standard & HP Models)
'Grunter' Boat Trailer Winch Mounting Bracket
ATV Winch 4,500Lb Mounting Plate
Wiring Diagrams:
Dual Motor Winch Wiring Diagram
Winch Weights:
Winch Type | Other | 92ft (28m) Cable | 92ft (28m) Rope | 100ft (30m) Rope | 100ft (30m) Cable | 148ft (45m) Cable | 148ft (45m) Rope |
ATV Winch 4,500Lb | 15lb (7 kg) | X | X | X | X | X | X |
9,500Lb | X | 57lb (26 kg) | 42lb (19 kg) | X | X | X | X |
10,000Lb (High Speed) | X | X | 50lb (23 kg) | X | X | X | X |
12,000Lb | X | 66lb (30 kg) | 50lb (23 kg) | X | X | X | X |
17,000Lb Single Motor | X | 60lb (30 kg) | 50lb (23 kg) | X | X | 88lb (40 kg) | 57lb (26 kg) |
17,000Lb Dual Motor | X | X | X | X | X | 101lb (46 kg) | 71lb (32 kg) |
Tow Truck Winch 20,000Lb | X | 100lb (45 kg) | 66lb (30 kg) | X | X | X | X |
25,000Lb | X | X | X | 68lb (31 kg) | 104lb (47 kg) | X | X |
Cable Data:
Winch Type | Cable Type | Length | Cable Size |
Grunter Boat Trailer Winches (All models) |
Positive (Power) |
7m (~23ft) | 50mm² |
Negative (Earth) |
3m (~10ft) | 32mm² | |
Control Box Cables |
Various <1m (< ~3ft) From winch to control box only. | 25mm² | |
Grunter Cable Upgrade (Postive cable only) |
Positive (Power) |
10m (~32ft) | 50mm² |
4x4 Winches (All models) Mustang, Colt, Steed, Mule, Brumby, Stallion, Tow Truck winch models. |
Positive (Power) |
1.8m (~6ft) | 25mm² |
|
Negative (Earth) |
1.8m (~6ft) | 25mm² |
Control Box Cables |
Various <1m (< ~3ft) From winch to control box only. | 25mm² | |
4x4 Winch Cable Upgrade |
Positive (Power) |
3m (~10ft) | 25mm² |
Negative (Earth) |
3m (~10ft) | 25mm² | |
Big Air - Air Compressors (All models) |
Positive (Power) |
3m (~10ft) | 16mm² |
Negative (Earth) |
3m (~10ft) | 16mm² |
