A three-phase 415V winch suits industrial and fixed installations where three-phase power is already available and the application demands heavier or more frequent pulling. Three-phase motors provide strong starting performance and are well suited to commercial environments such as workshops, loading areas, ramps and plant installations. Sherpa's 415V range includes higher-capacity options than its single-phase 240V winch. Selection should still be based on required line pull, rope length, duty cycle and mounting geometry rather than voltage alone. If the site only has single-phase power, do not improvise a supply—the electrical system must be appropriate for the motor and control equipment.

Three-phase equipment should be connected through correctly rated isolation, overload protection and controls appropriate to the site. Supply voltage, phase sequence, motor current and protective devices need to match the winch specifications. Because reversing the phase sequence can affect motor rotation, commissioning should confirm that the winch pays in and out in the intended direction before any load is attached. Outdoor installations need suitable ingress protection and cable management. In Australia, fixed 415V work is not a DIY task and should be handled by appropriately licensed electrical personnel. The mechanical winch mounting and the electrical installation should be commissioned together so emergency stopping, isolation and operator position all work as intended.

The same drum-winch principle applies regardless of the motor supply. Maximum line pull is available on the innermost rope layer, where the effective drum radius is smallest. As more rope builds on the drum, each layer increases the leverage of the load against the gearbox and available pulling force reduces. If a heavy pull is expected, rig the system so adequate rope can be paid out while maintaining the minimum safe wraps specified by Sherpa. A correctly engineered pulley system can also reduce winch load or redirect the line. Do not compensate for poor geometry or an overloaded outer drum layer by increasing electrical protection or repeatedly stalling the motor.

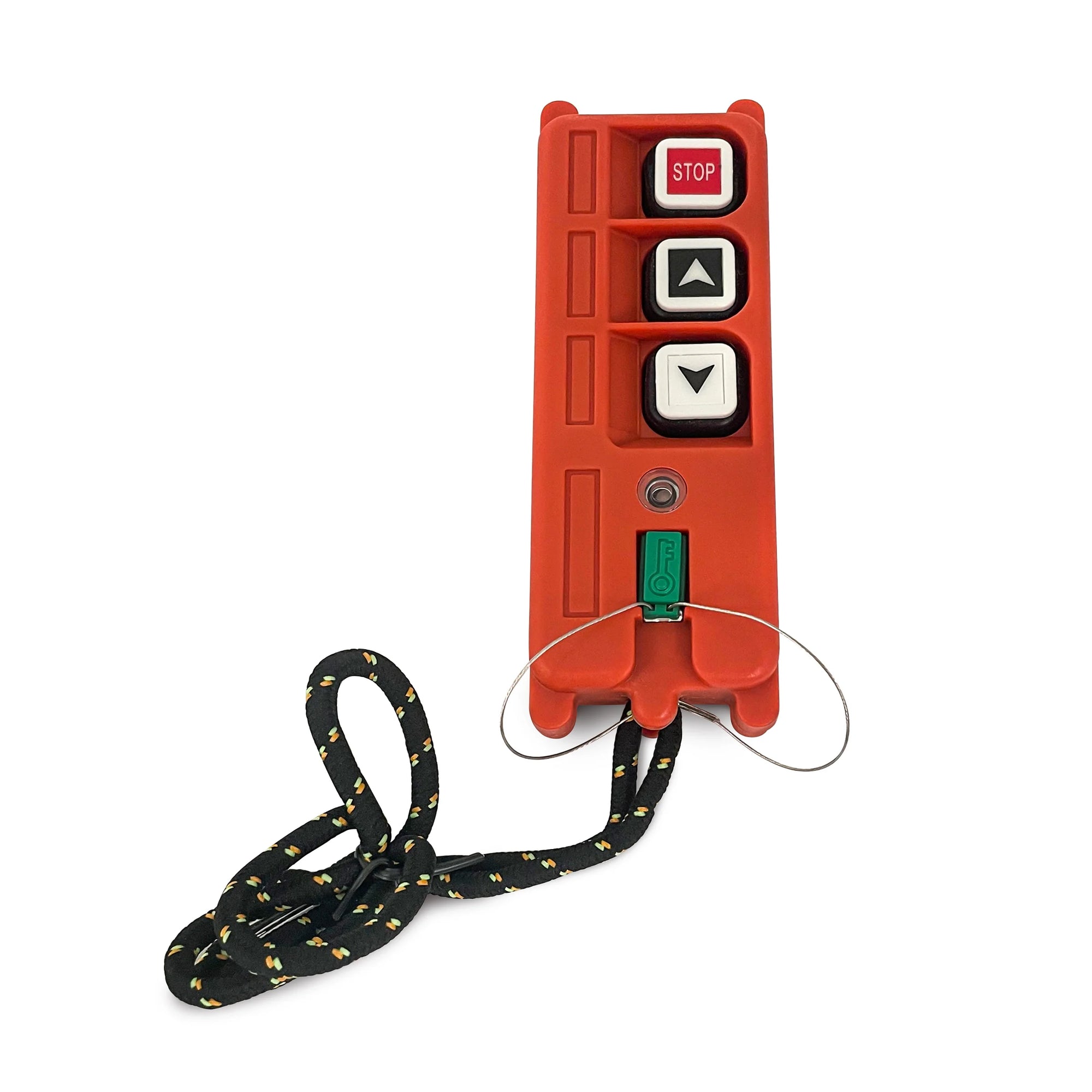

Sherpa offers a wireless control kit for its 240V and 415V winches. Remote operation can help the operator stand where the load and rope path are visible, but it must be integrated with the existing control and safety system rather than bypassing it. The installation should retain suitable isolation and emergency stopping, and the receiver must be mounted where it is protected from the environment and electrical interference. Always test direction, range and stop response without load after commissioning. For industrial use, site risk controls and local procedures may require additional guarded controls or restricted access beyond the standard winch remote.

Base the interval on operating hours, load severity and environment. Inspect wire rope or synthetic rope, drum flanges, fairleads, gearbox, brake, mounting bolts and structural anchors. Electrical maintenance should include the motor, contactors, control enclosure, terminals and protective devices, with any heat discolouration or moisture ingress investigated promptly. Check that the rope spools evenly and that the brake holds the intended load without creep. In dusty or marine environments, shorten inspection intervals because contamination and corrosion accelerate wear. Keep service records for commercial installations so changes in brake performance, rope condition or electrical faults can be identified before they become a failure.
