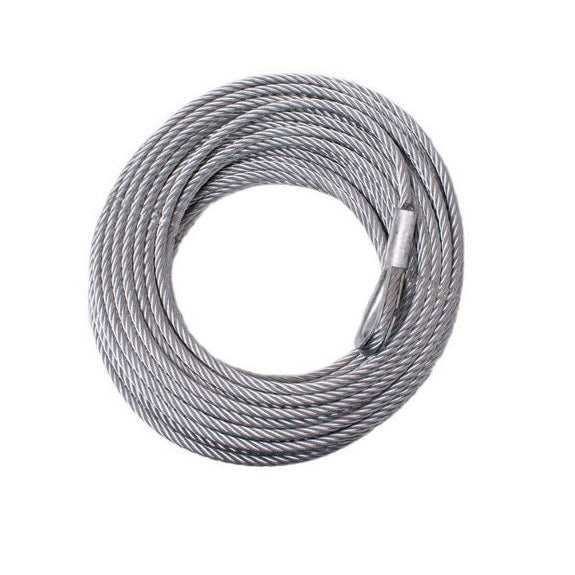

Sherpa 4x4 Steel Winch Cables
SWC28M
$169.00 - $399.00$189.00 - $429.00
Genuine Sherpa winch cables. Available in various lengths and load ratings. Retro fit to the Sherpa winch range as well as many other brands.
-
A quality replacement for damaged steel cable or for those reverting back from synthetic rope. The hook end has a loop-back to allow attachment of the winch hook. At the barrel end is a crimped lug allowing the cable to be screwed onto the winch barrel.
Don't trust cheap Chinese winch cables - a snapped winch cable can be lethal.
-
Winch Cable SWC28M SWC30M SWC45M Length 28m 30m 45m Diameter 10mm 12mm 10mm Breaking Strain 19,400lb 30,000lb 19,400lb Warranty 12 months 12 months 12 months
Winch Cable SWCG30M6MM SWCG30M8MM Length 30m 30m Diameter 6mm 8mm Breaking Strain 7,200 lb 12,000lb Warranty 12 months 12 months
WARNING: Sherpa 4x4 advises the use of a winch dampener when performing vehicle recovery. Avoid using damaged or frayed cable. Avoid shock loading the cable or winch. -
Grunter Boat Winch Owner's Manual
Winch Dimensions:
'Mustang' 9,500Lb with 28m spool
'Brumby' 10,000Lb high speed winch
'Steed' 17,000Lb with 28m spool
'Steed' 17,000Lb with 45m spool
'Mule' 17,000Lb dual motor winch with 45m spool
'Stallion' 25,000Lb winch with 30m spool
'Grunter' boat trailer winches (Standard & HP Models)
'Grunter' Boat Trailer Winch Mounting Bracket
ATV Winch 4,500Lb Mounting Plate
Wiring Diagrams:
Dual Motor Winch Wiring Diagram
Winch Weights:
Winch Type Other 92ft (28m) Cable 92ft (28m) Rope 100ft (30m) Rope 100ft (30m) Cable 148ft (45m) Cable 148ft (45m) Rope ATV Winch 4,500Lb 15lb (7 kg) X X X X X X 9,500Lb X 57lb (26 kg) 42lb (19 kg) X X X X 10,000Lb (High Speed) X X 50lb (23 kg) X X X X 12,000Lb X 66lb (30 kg) 50lb (23 kg) X X X X 17,000Lb Single Motor X 60lb (30 kg) 50lb (23 kg) X X 88lb (40 kg) 57lb (26 kg) 17,000Lb Dual Motor X X X X X 101lb (46 kg) 71lb (32 kg) Tow Truck Winch 20,000Lb X 100lb (45 kg) 66lb (30 kg) X X X X 25,000Lb X X X 68lb (31 kg) 104lb (47 kg) X X
Cable Data:Winch Type Cable Type Length Cable Size Grunter Boat Trailer Winches (All models) Positive (Power)
7m (~23ft) 50mm² Negative (Earth)
3m (~10ft) 32mm² Control Box Cables
Various <1m (< ~3ft) From winch to control box only. 25mm² Grunter Cable Upgrade (Postive cable only) Positive (Power)
10m (~32ft) 50mm² 4x4 Winches (All models)
Mustang, Colt, Steed, Mule, Brumby, Stallion, Tow Truck winch models.
Positive (Power)
1.8m (~6ft) 25mm² Negative (Earth)
1.8m (~6ft) 25mm² Control Box Cables
Various <1m (< ~3ft) From winch to control box only. 25mm² 4x4 Winch Cable Upgrade Positive (Power)
3m (~10ft) 25mm² Negative (Earth)
3m (~10ft) 25mm² Big Air - Air Compressors (All models) Positive (Power)
3m (~10ft) 16mm² Negative (Earth)
3m (~10ft) 16mm²
