Sherpa 4x4 Winch Anchor

Sherpa 4x4 Winch Anchor

The Sherpa 4x4 Winch Anchor provides a reliable recovery anchor point when there are no suitable trees or other natural anchor points within reach. Designed for off-road vehicle recovery, it can be used insand, mud, soil and gravel, making it a valuable addition to any serious 4WD recovery kit.

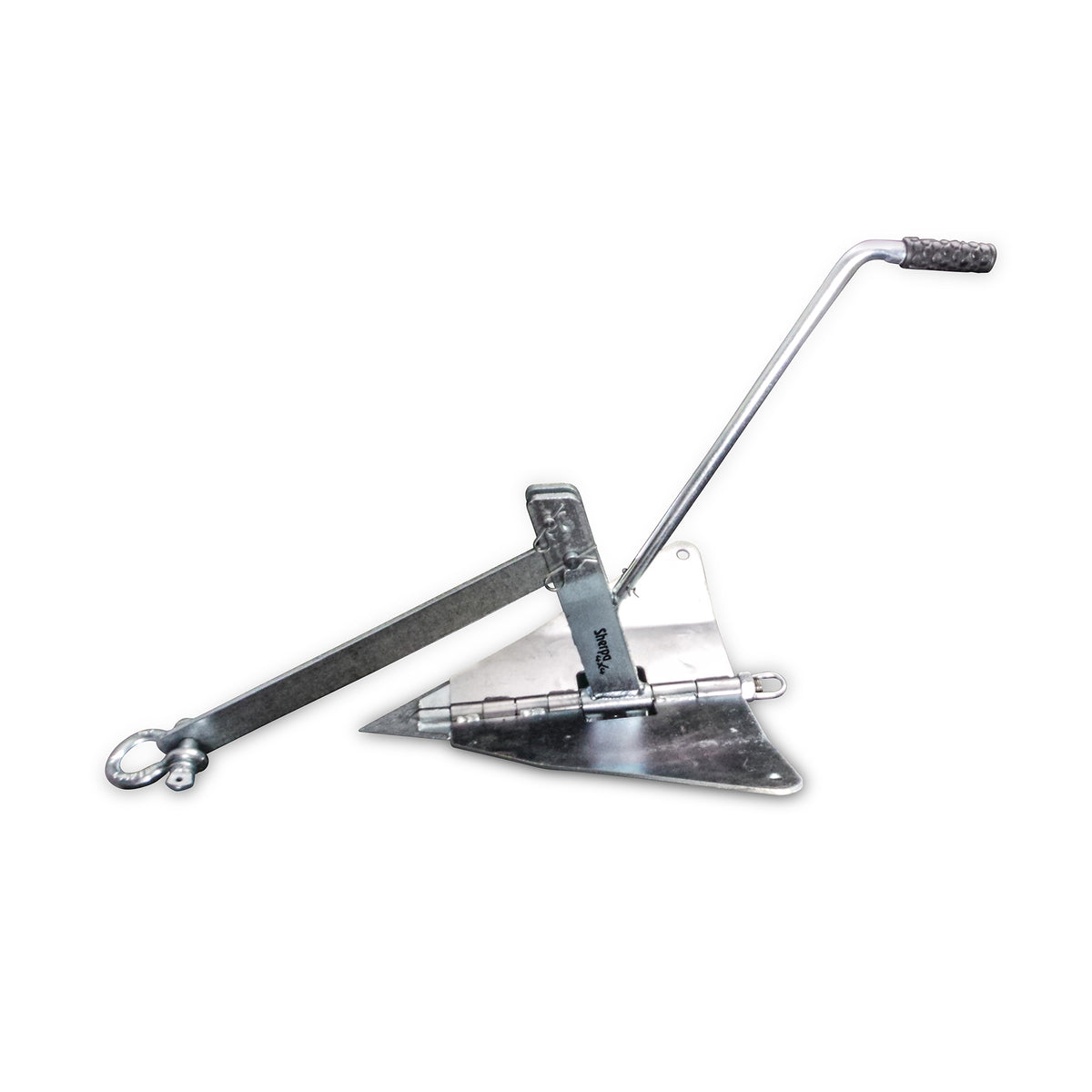

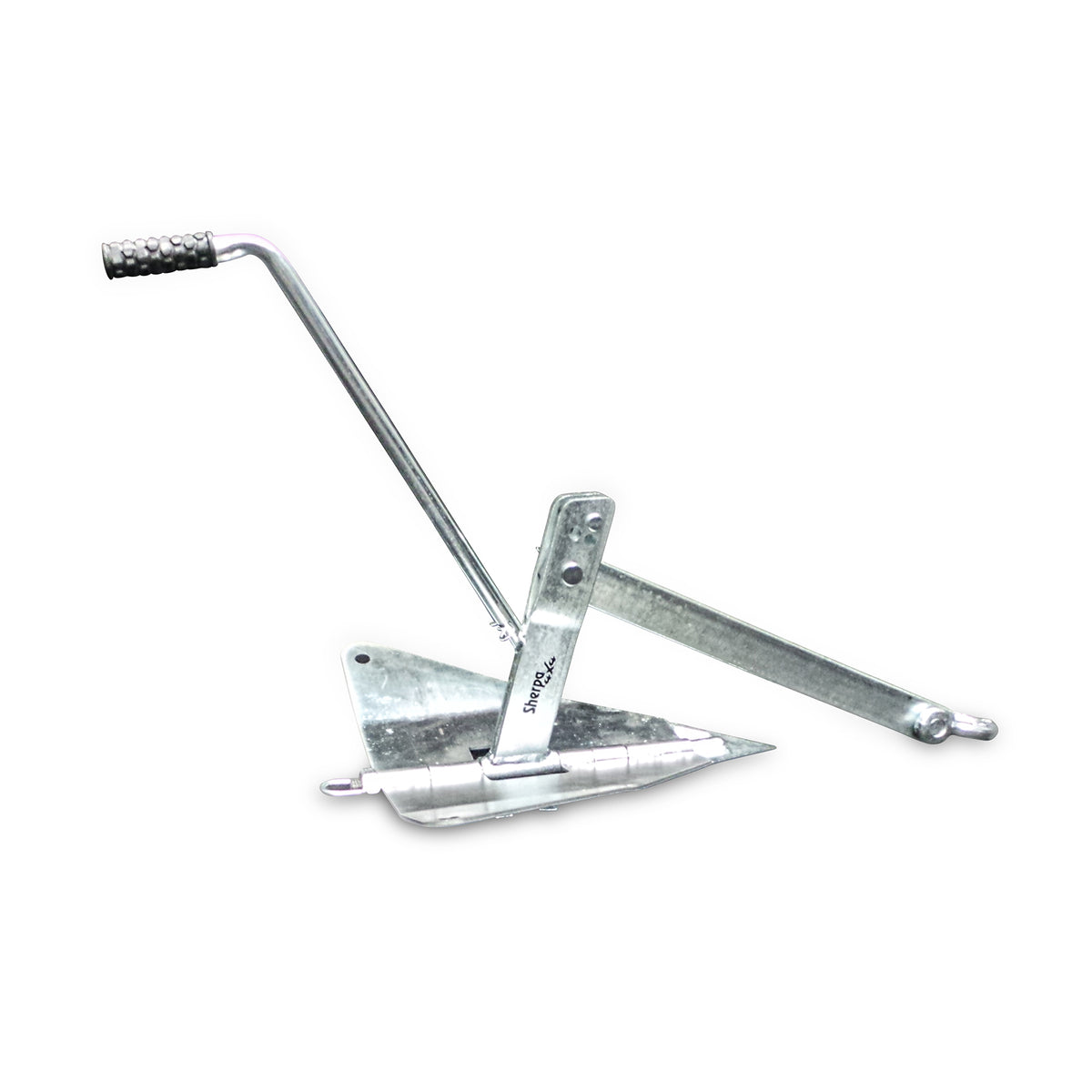

Manufactured from heavy-duty galvanised steel, the anchor features angled blades that are designed to dig progressively into the ground as winching force is applied. Once assembled, simply connect your winch hook to the supplied bow shackle to create an anchor point for vehicle recovery.

The folding design allows the anchor to pack down for easier transport and storage, with a carry bag and bow shackle included.

Winch Anchor Features

• Heavy-duty galvanised steel construction
• Designed for use where suitable trees or anchor points aren't available
• Suitable for sand, mud, soil and gravel
• Angled blades provide a self-digging action under load
• Suitable for synthetic rope and steel cable winches

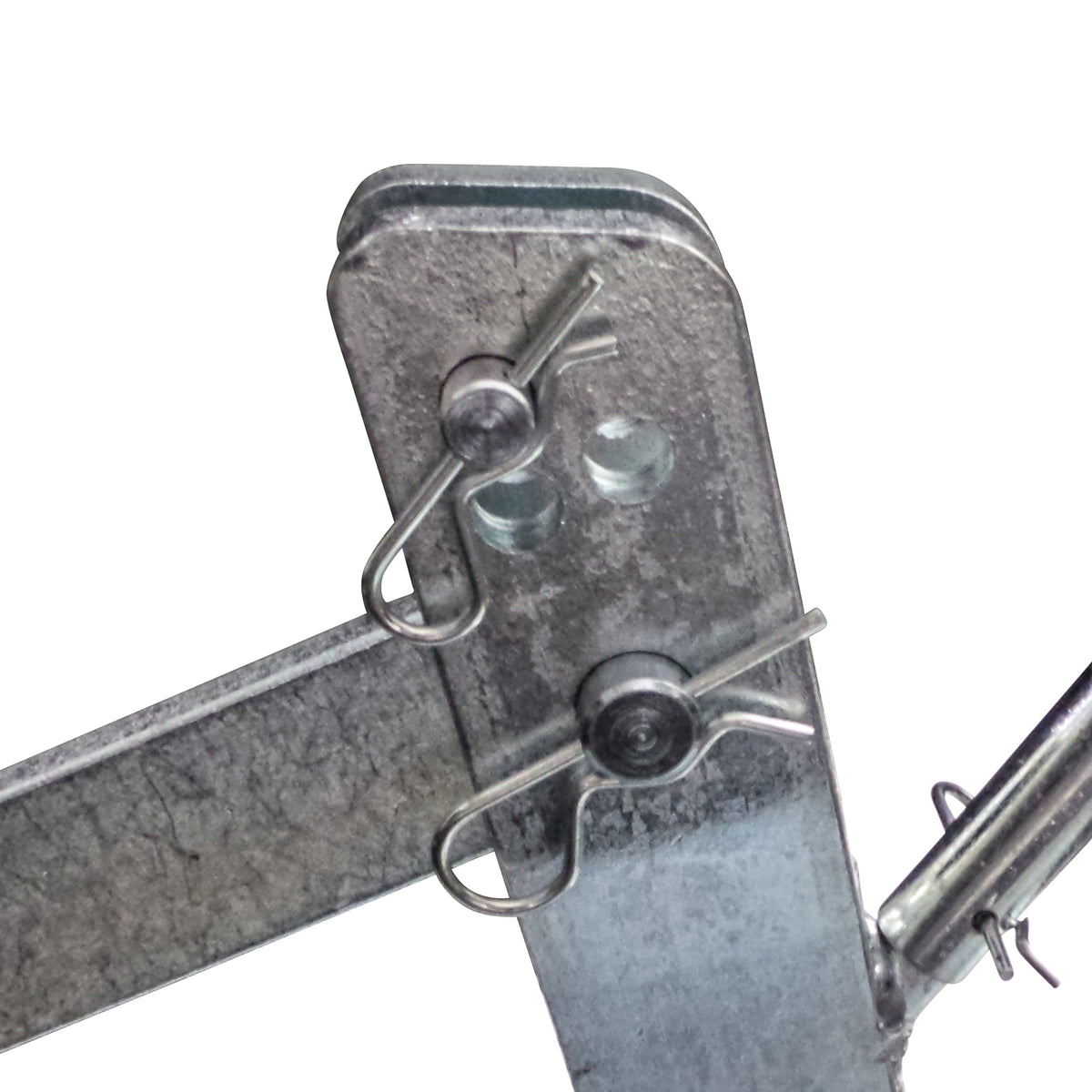

• Heavy-duty pins and components

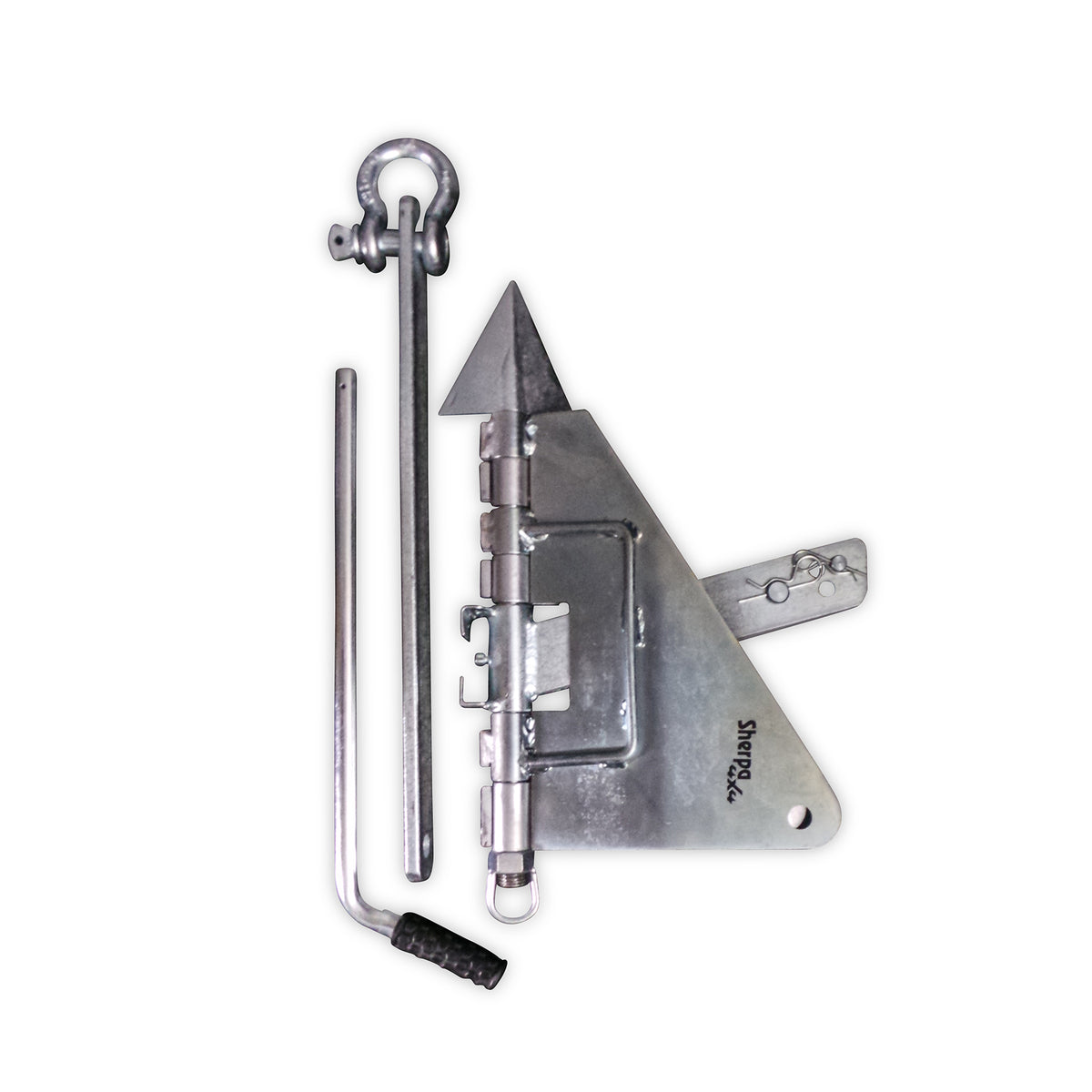

• Folding design for compact storage and transport
• Bow shackle included
• Carry bag included

Winch Anchor Assembly & Use

Step 1: Remove the R-clip from the handle.

Step 2: Fold down the anchor wings.

Step 3: Unthread and remove the bow shackle pin.

Step 4: Remove the handle from the anchor.

Step 5: With the wings in the open position, slide the shank forward into its operating position.

Step 6: Reinstall and securely tighten the bow shackle.

Step 7: Attach the handle in the operating position and secure it with the R-clip.

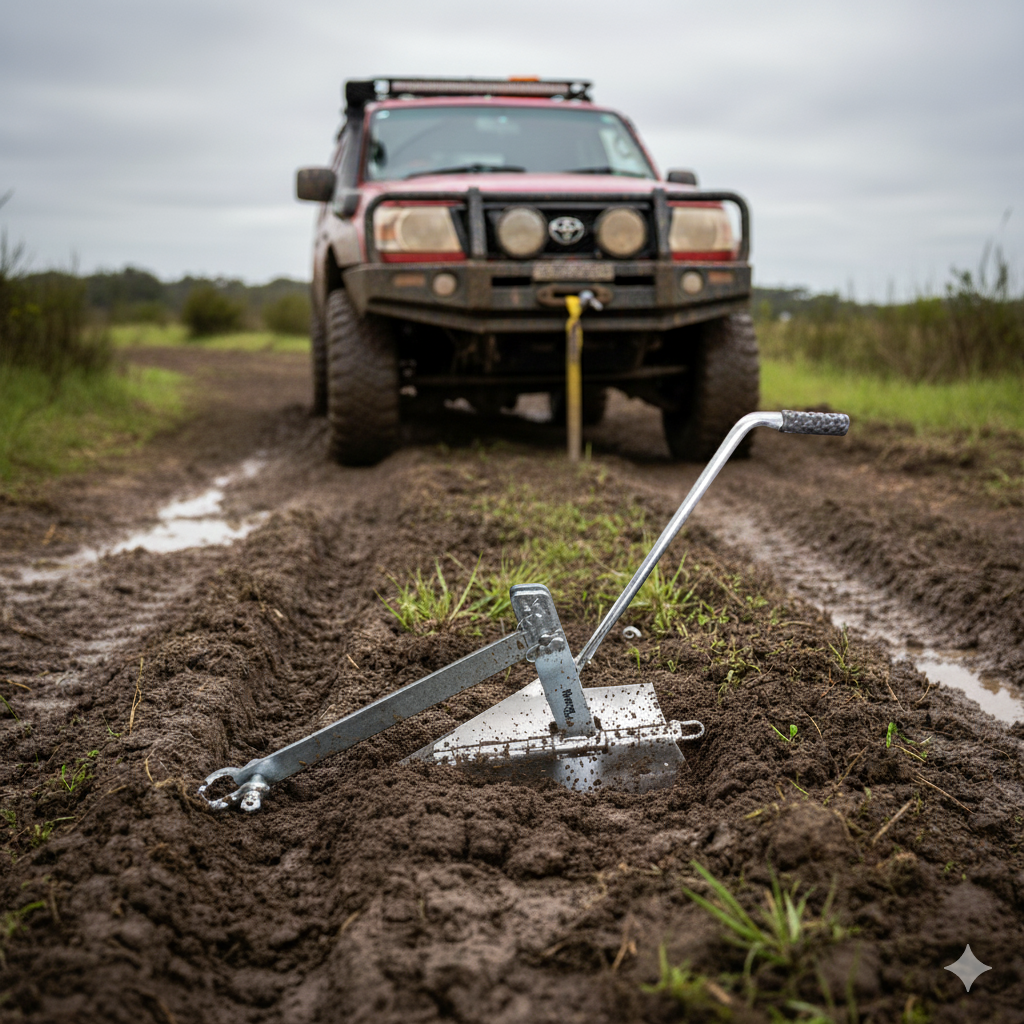

Step 8: Position the anchor appropriately for the recovery and connect the winch hook to the bow shackle.

The winch anchor is now assembled and ready for use. To pack away, reverse the assembly procedure.

Important Safety Information

• Always inspect the winch anchor, pins and shackle for signs of wear, deformation, fatigue or damage before use.
• Ensure the anchor is correctly assembled and securely positioned before applying load.
• Keep all people clear of the recovery line, anchor and potential recoil path while winching.
• Never stand between the winch anchor and the vehicle during a recovery.
• Use an appropriate winch damper and follow recognised safe winching procedures.
• Never exceed the rated capacity of the winch anchor or any component within the recovery system.
• Ground conditions can significantly affect anchor holding capacity. Ensure the anchor is securely set before commencing the recovery.
• Stop the recovery immediately if the anchor moves excessively, becomes unstable or shows signs of failure.
