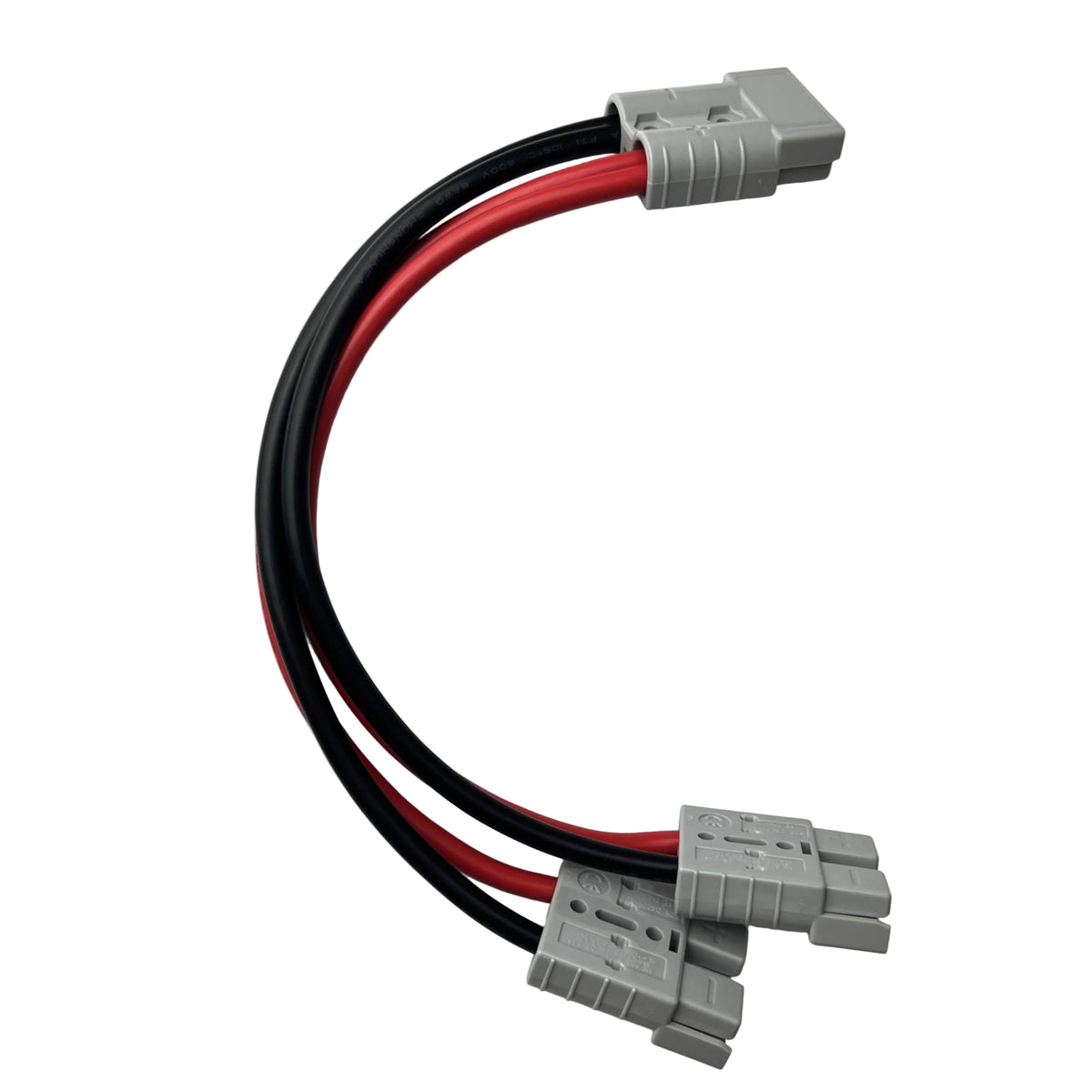

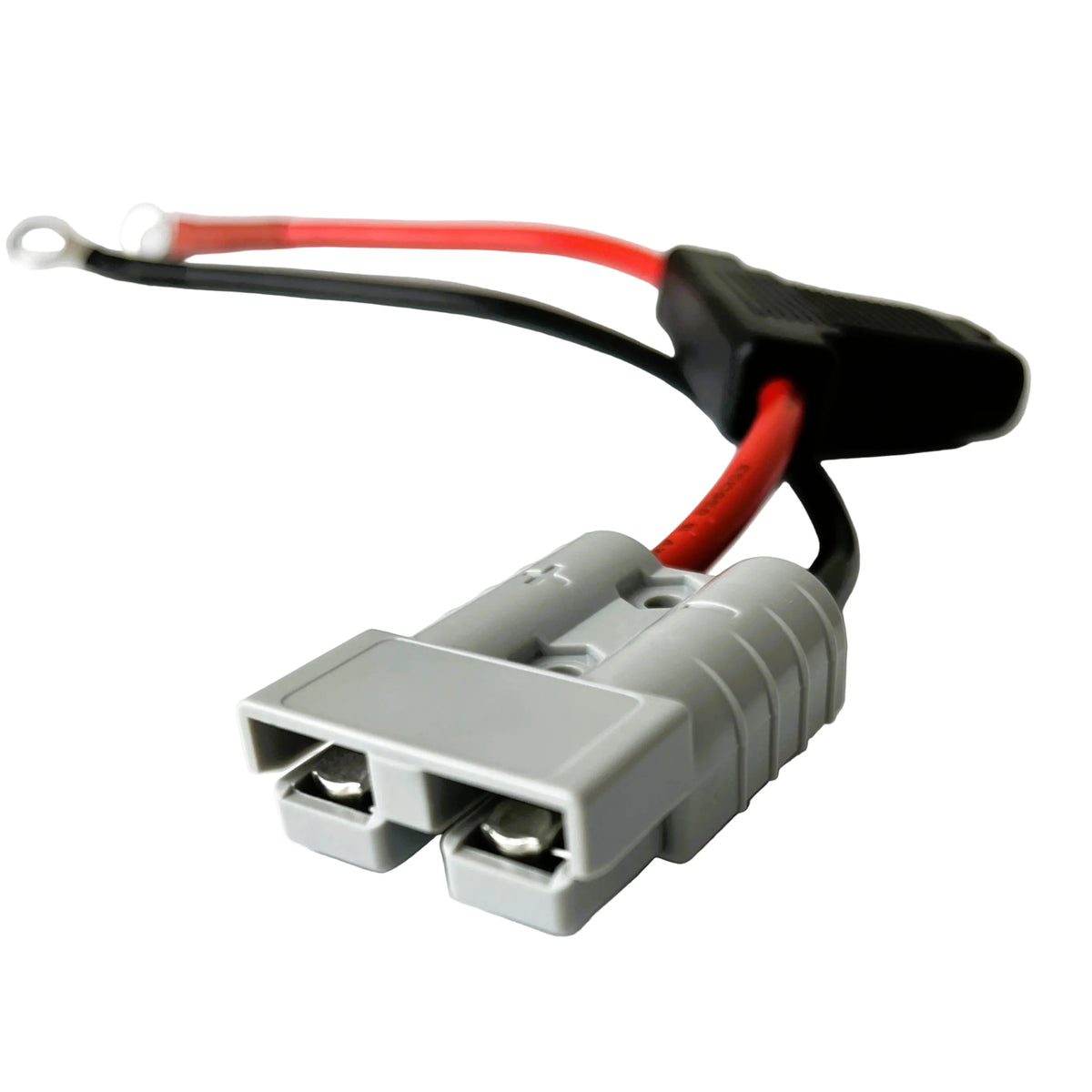

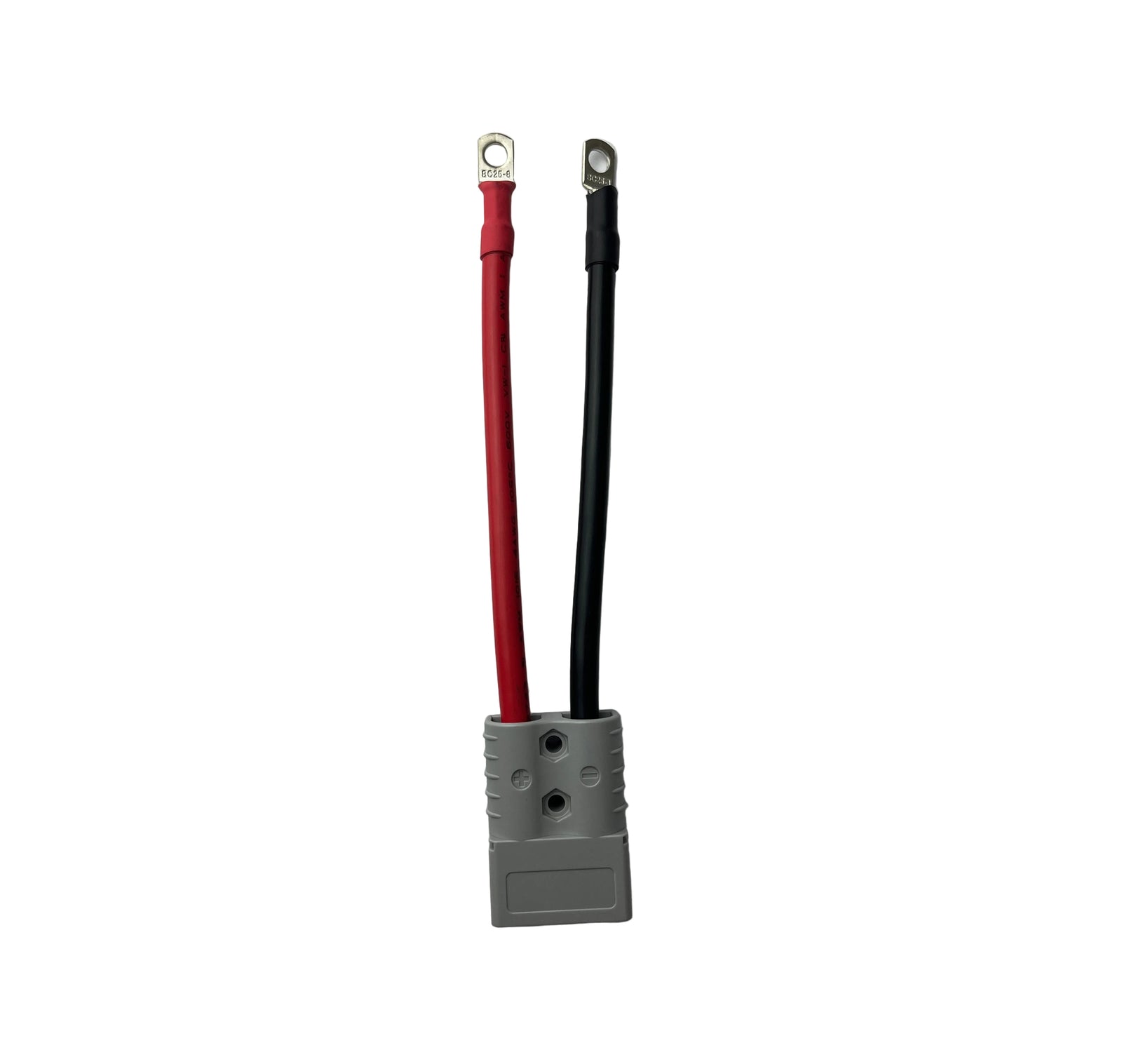

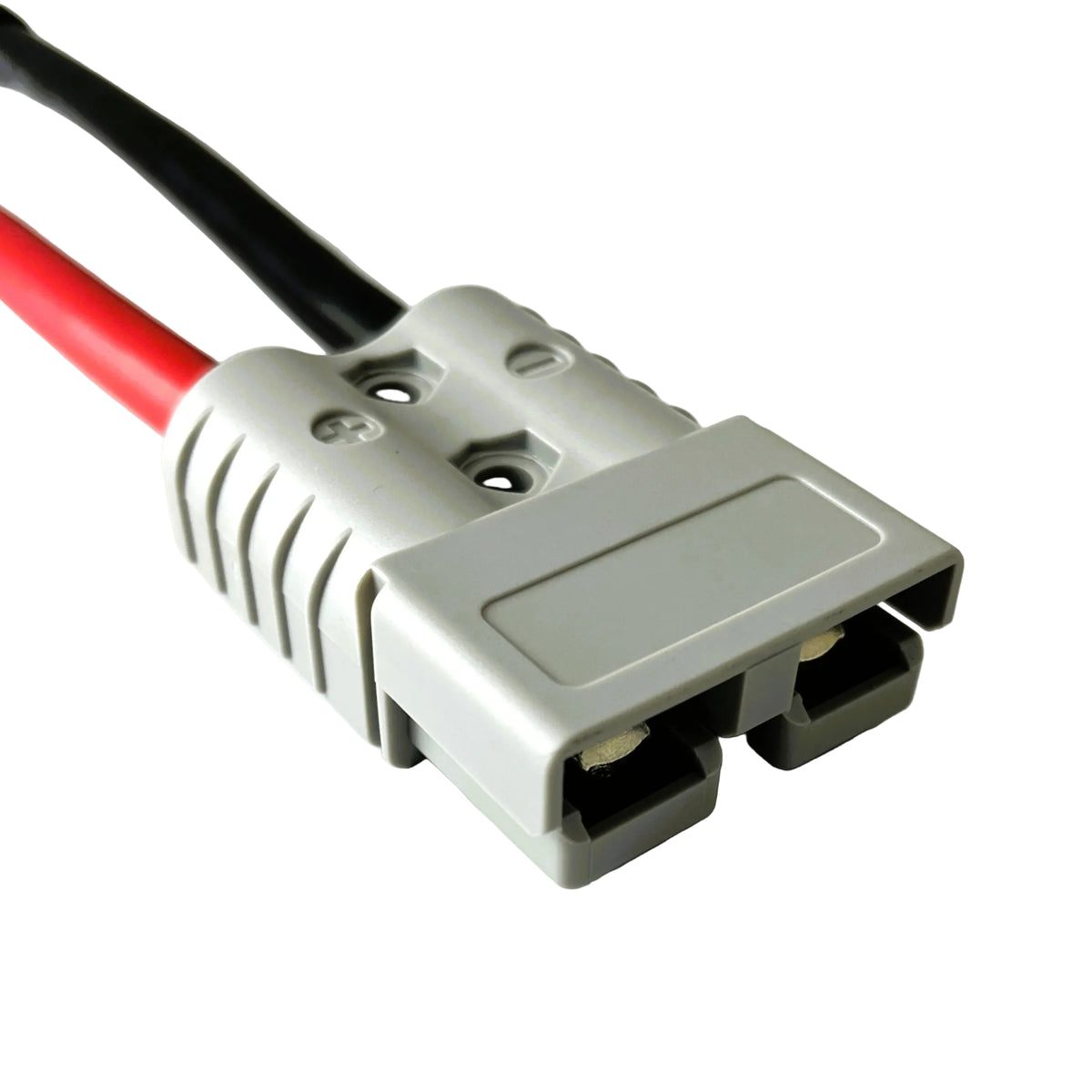

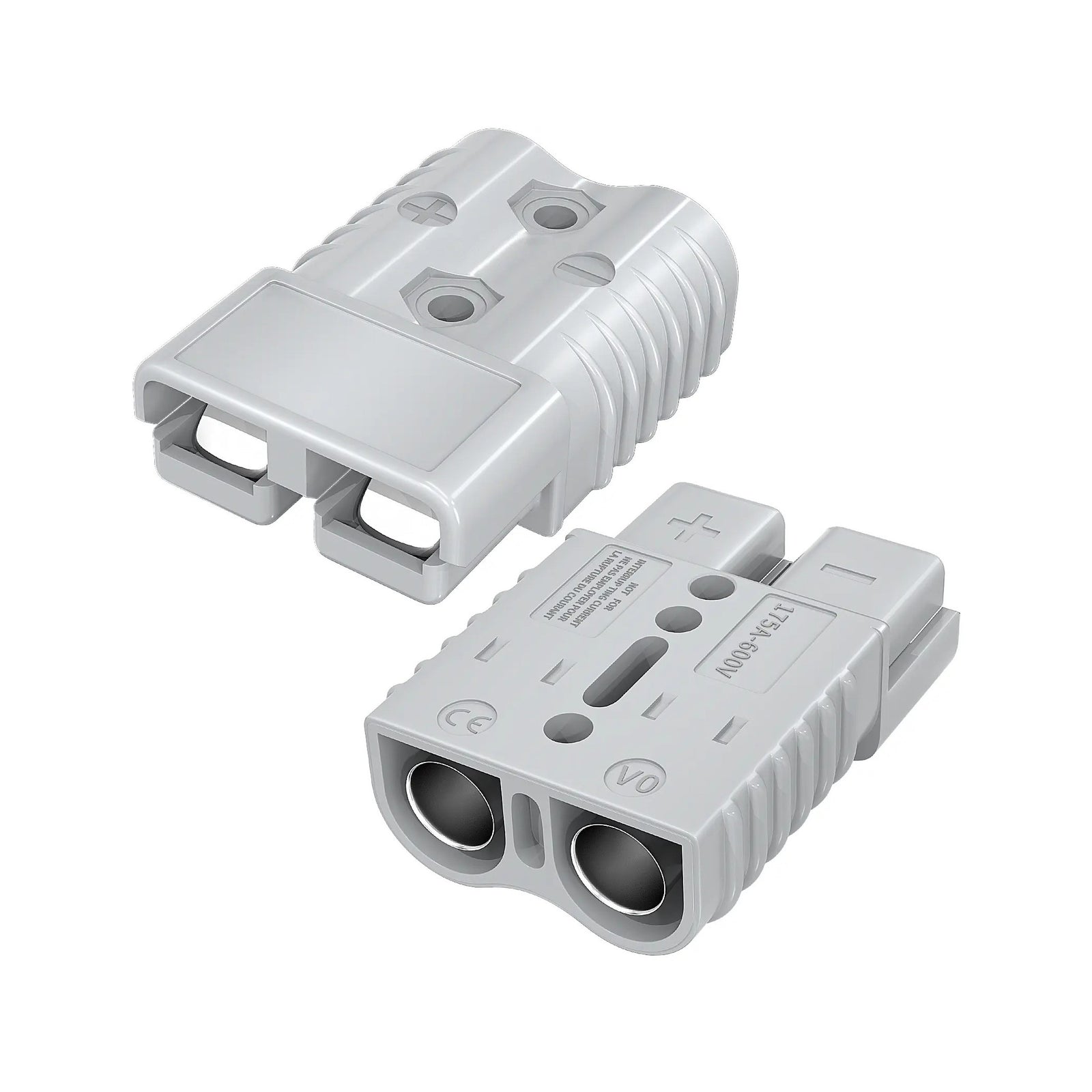

Start with maximum circuit current and cable length. High-current battery, inverter, winch and charger circuits need much heavier cable than lighting or accessory wiring. The connector must be rated for at least the same continuous current as the circuit, and the contact size must suit the cable conductor. Sherpa carries high-current Anderson-style battery connectors and heavy cable products for 12V, 24V and 36V systems. Keep cable runs short, protect them from abrasion and use properly crimped lugs. A 120A connector is not suitable for a circuit that can routinely exceed 120A simply because the plug mates physically. Current rating applies to the complete connection, not only the cable.

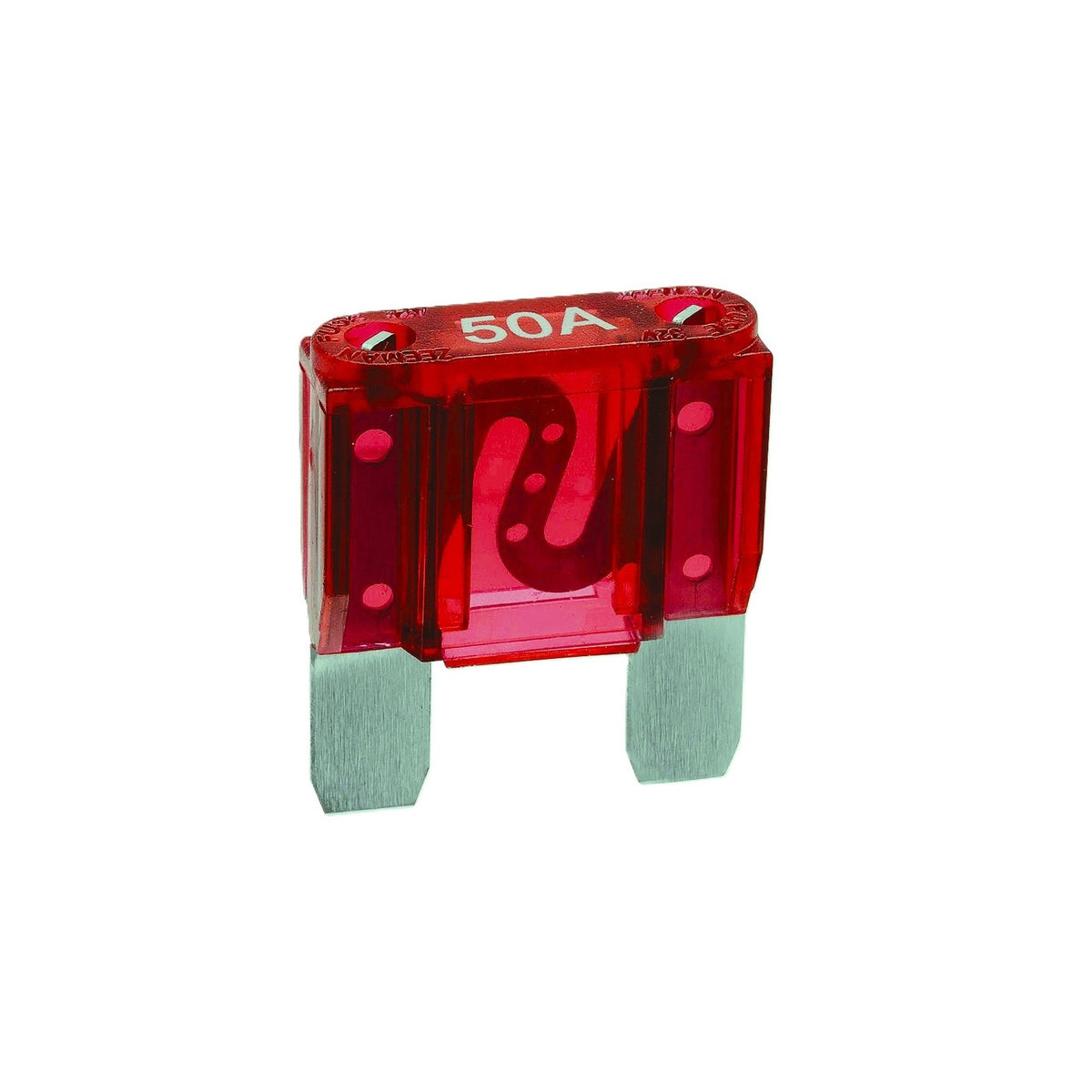

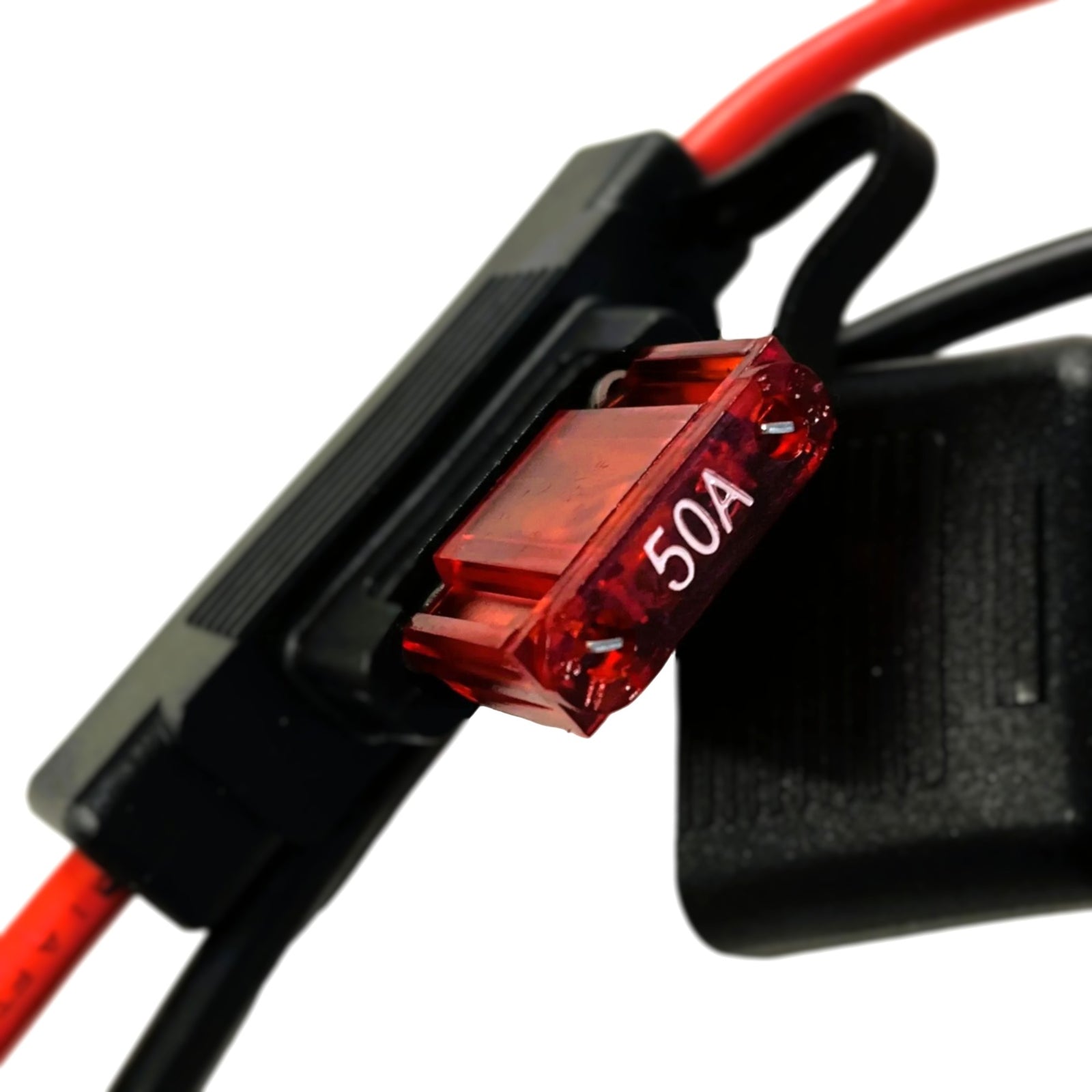

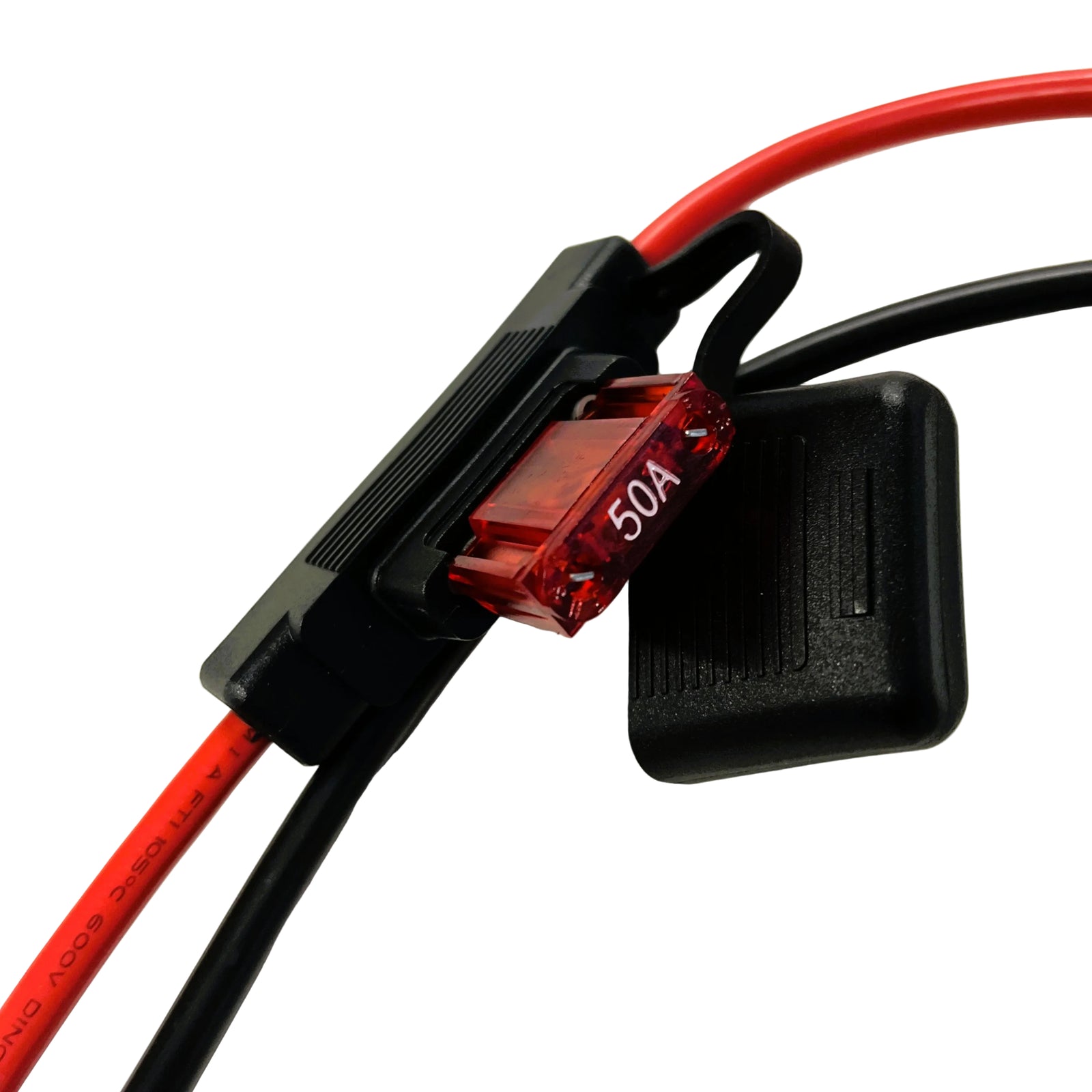

Both protect wiring from excessive current, but they behave differently. A fuse is simple, compact and usually has predictable interrupting characteristics; once it operates it must be replaced. A resettable DC circuit breaker can also act as a service disconnect and is convenient where manual reset is useful. The choice depends on circuit current, fault level, environment and manufacturer recommendations. Do not select protection by the accessory's normal draw alone—the device must protect the cable and safely interrupt the available battery fault current. High-capacity battery banks can deliver enormous short-circuit current, so use DC-rated components from reputable suppliers and mount them where heat and moisture will not compromise operation.

Install it in the main positive circuit where it can disconnect the intended battery or high-current accessory without leaving a long length of unprotected live cable. For winches, an accessible isolator is valuable because the heavy cable to the winch can otherwise remain energised whenever the battery is connected. The isolator must be rated for DC voltage and the actual current, including short-duration peaks where applicable. Keep cable runs practical and protect terminals from accidental contact with tools or bodywork. In multi-battery systems, label isolators clearly so a person servicing the system knows which battery or circuit has been disconnected.

Heat is usually caused by resistance. Loose nuts, poor crimps, contaminated contacts, undersized components or corrosion can all create a small resistive point that becomes very hot when 100A or more flows through it. Replacing a melted fuse holder without correcting the connection often results in a repeat failure. Inspect the cable strands and lug barrel for signs of heat travelling away from the joint. Tighten fasteners to the component specification and support heavy cables so vibration does not loosen the connection. If a connector becomes warmer than the surrounding cable during normal operation, measure voltage drop across it under load and investigate before increasing the current rating of the fuse.

Many components can be used in both, but the environment changes the installation requirements. Boats see persistent moisture, salt and galvanic corrosion, so tinned cable, sealed connectors and corrosion-resistant mounting hardware are especially important. 4WD systems see dust, vibration, heat and stone impact. The electrical rating still needs to match voltage and current in either application. A component being water-resistant does not mean its exposed copper cable ends are protected from salt. Use boots, heat-shrink and sealed glands where appropriate and position fuses or breakers where they can be inspected. Always consider the complete installed system rather than the standalone accessory's rating.
