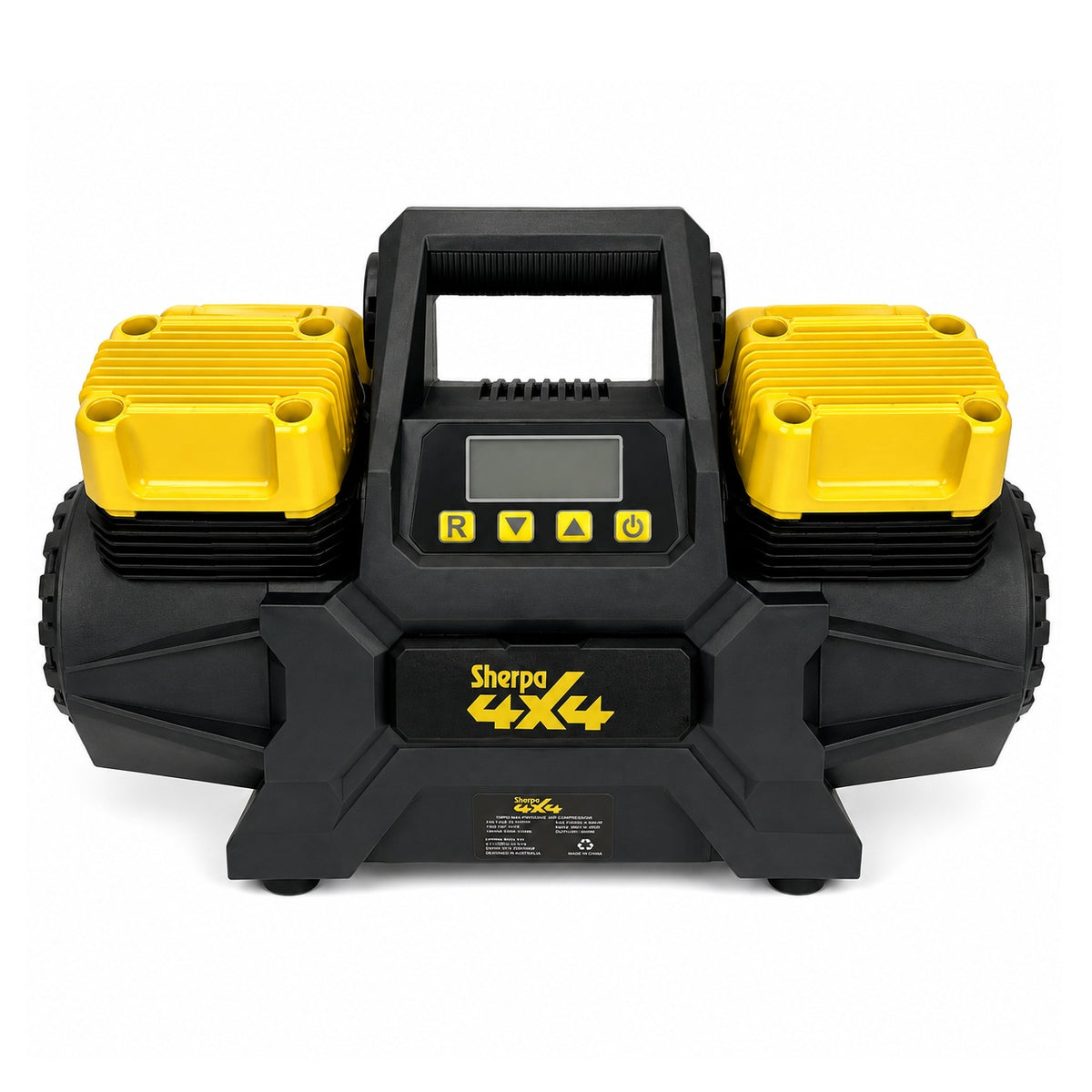

Sherpa 4x4 'BIG V4' Quad-Air Bundle – (400L/min) 4-Tyre Inflation System

Sherpa 4x4 'BIG V4' Quad-Air Bundle – 400L/min 4-Tyre Inflation System

400LPM | Inflate 4 Tyres at Once | Pre-Set Pressure Control | 12V & 24V Options

Take the hassle out of airing up with the Sherpa 4x4 'BIG V4' Quad-Air Bundle — a high-output, four-tyre inflation system designed for serious 4WDs, touring vehicles, trucks and off-road applications.

At the heart of the system is the Sherpa 4x4 BIG V4, a powerful 4-cylinder portable compressor delivering up to 400L/min free air delivery. Combined with the Quad-Air hose system, it allows you to connect to all four tyres at the same time, helping bring them up to pressure together without repeatedly moving a single hose from wheel to wheel.

Simply connect the system, set your desired pressure on the BIG V4 and start inflation. The compressor's pre-set pressure control takes care of the rest, giving you a fast and convenient way to get all four tyres aired up and get moving again.

Everything packs into the supplied heavy-duty carry bag for convenient storage in your 4WD, truck, caravan or touring setup.

WHY QUAD-AIR?

• Inflate All 4 Tyres at Once – Connect the system to all four tyres and air them up together.
• 400L/min Maximum Air Flow – Huge free-air delivery for rapid inflation of large off-road tyres.
• Consistent Tyre Pressure – Simultaneous inflation helps achieve consistent pressure across all four tyres.
• Pre-Set Pressure Control – Select your target pressure and let the BIG V4 manage inflation.
• Less Hassle – No more crouching at each wheel and repeatedly swapping a single inflation hose.
• Ideal After Airing Down – Perfect for getting back to road pressures after beach driving, sand, mud or technical off-road tracks.
• Built for Large Vehicles – Suited to 4WDs, touring rigs, trucks, caravans, trailers and other demanding applications.

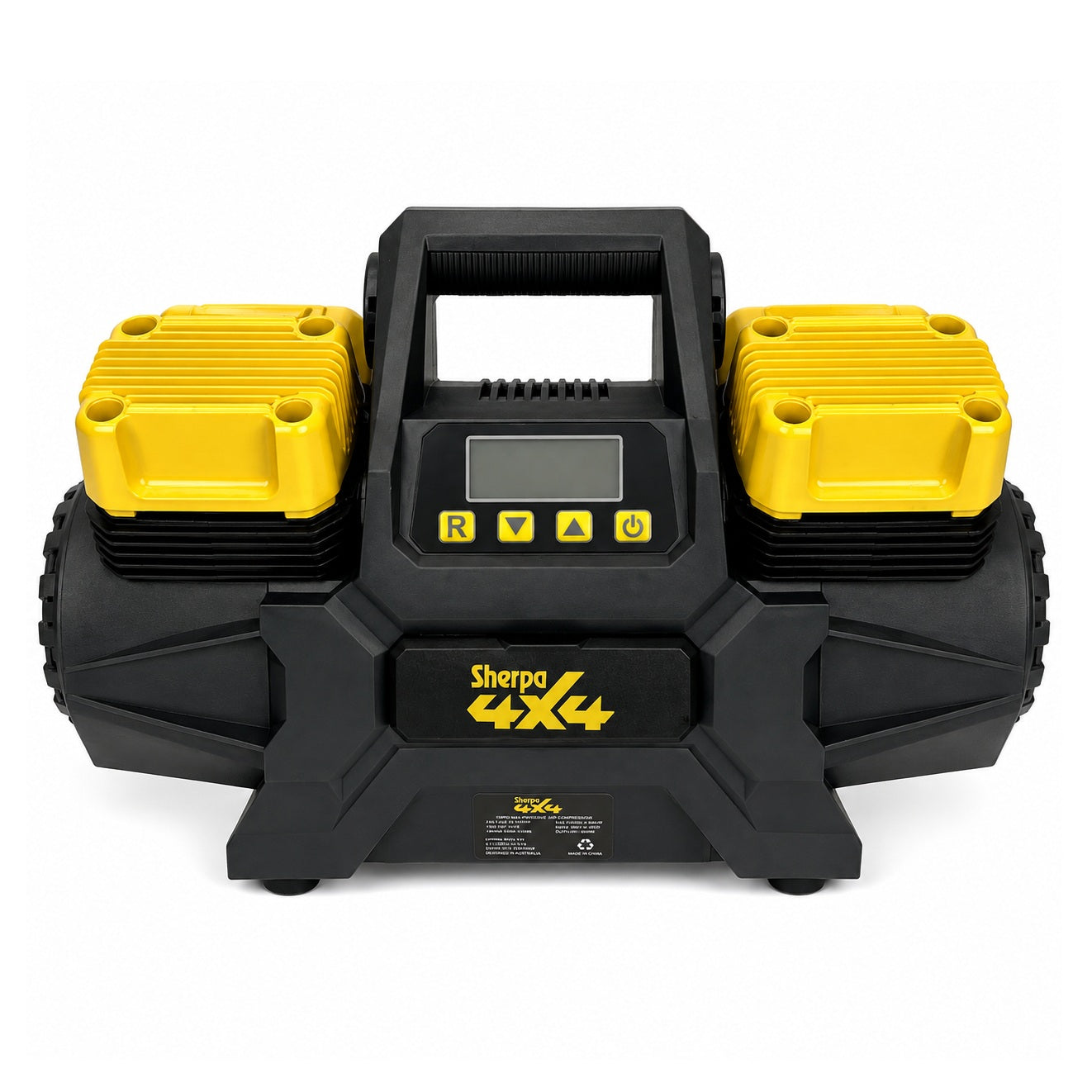

BIG V4 COMPRESSOR FEATURES

• Massive 400L/min Output – Serious airflow for rapid tyre inflation.
• 4-Cylinder V4 Design – High-volume, oil-free compressor designed for demanding use.
• Pre-Set Pressure Control System – Set your desired pressure directly at the compressor.
• Heavy-Duty Electrical System – Engineered to support the BIG V4's high current requirements.
• 5AWG Power Cables – Heavy-duty 2.2m power leads minimise voltage drop under high load.
• 120A Anderson-Style Connection – Robust high-current connection for reliable operation.
• 125A Inline Fuse – Provides electrical protection for the 12V system.
• High-Capacity Cooling – Oversized cooling fans and heat-dissipating cylinder fins help manage temperature during demanding inflation jobs.
• Oil-Free Operation – Clean air output with no compressor oil maintenance required.
• Heavy-Duty Carry Bag – Keeps the compressor and Quad-Air accessories together and protected during transport and storage.

QUAD-AIR INFLATION SYSTEM

The Quad-Air system transforms the BIG V4 from an exceptionally powerful portable compressor into a convenient four-tyre inflation station.

Four individual air hoses run from the central distribution system to each tyre. The supplied Y-connectors divide the BIG V4's massive airflow between the front and rear of the vehicle, while the individual non-return valve assemblies help control airflow through the system.

Once connected, all four tyres can be inflated together rather than individually. This is particularly useful for large 4WDs where tyres may have been dropped substantially for sand, corrugations or technical off-road driving.

The result is a faster, simpler airing-up process with less walking around the vehicle and more consistent final tyre pressures.

PERFORMANCE

The BIG V4 is built around one objective: move a serious amount of air.

Rated at up to 400L/min free air delivery, its four-cylinder compressor and high-current electrical system provide the airflow required for large-volume 4WD and truck tyres.

As tyre pressure increases, airflow naturally reduces. However, the BIG V4 maintains strong inflation performance under pressure.

BIG V4 Quad-Air Bundle testing has achieved:

• Four 37" tyres simultaneously: 9-38psi in just over 5 minutes.
• One 215/60R16 tyre, 0–35 PSI: under 50 seconds.



The Quad-Air system takes advantage of this high-volume output by distributing air across four tyres simultaneously, making it particularly well suited to vehicles that regularly air down and back up.

Inflation times will vary depending on tyre size, starting pressure, target pressure, battery voltage, ambient conditions and whether one, two or four tyres are being inflated.

BUILT FOR AUSTRALIAN OFF-ROAD CONDITIONS

The BIG V4 has been engineered for demanding touring and off-road use, with heavy-duty electrical components, substantial cooling capacity and robust construction.

Precision-machined compressor components, large cooling fins and powerful fans help dissipate heat, while the upgraded 5AWG electrical leads are designed to deliver the high current required by the compressor with minimal voltage loss.

Whether you're airing back up after a day on the beach, leaving a remote off-road track or adjusting pressures to suit a heavy touring load, the BIG V4 Quad-Air Bundle gives you the airflow and convenience to get the job done quickly.

12V & 24V VEHICLE OPTIONS

The 12V BIG V4 operates from a suitable high-current 12V vehicle electrical supply.

For 24V vehicles, the bundle is available with a heavy-duty 24V to 13.8V DC/DC converter together with battery connector cables, eyelet terminals and a 120A Anderson-style connection, allowing the BIG V4 system to be used with compatible 24V trucks and touring vehicles.

This makes the Quad-Air Bundle an excellent option for everything from conventional 12V 4WDs through to larger 24V expedition and off-road trucks.

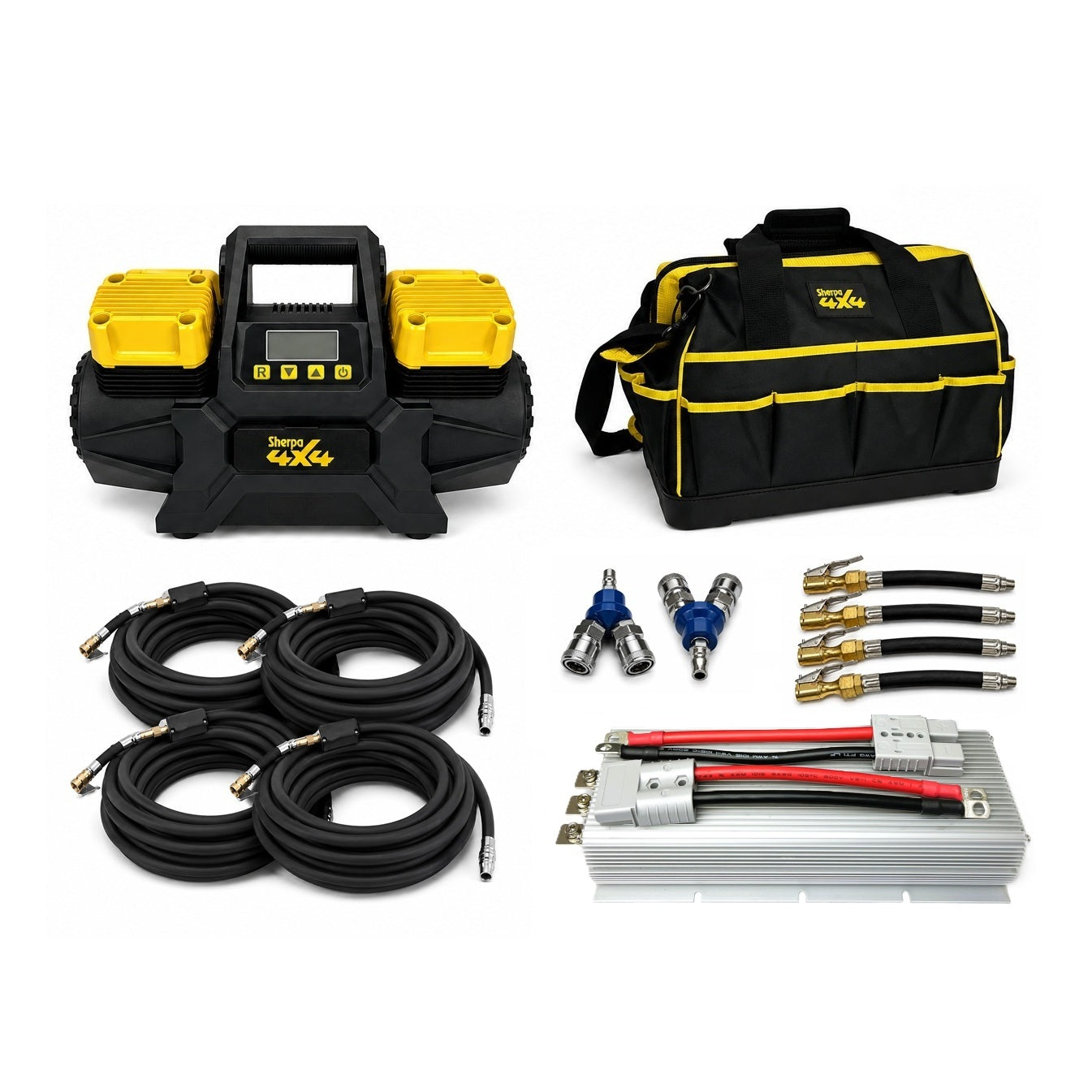

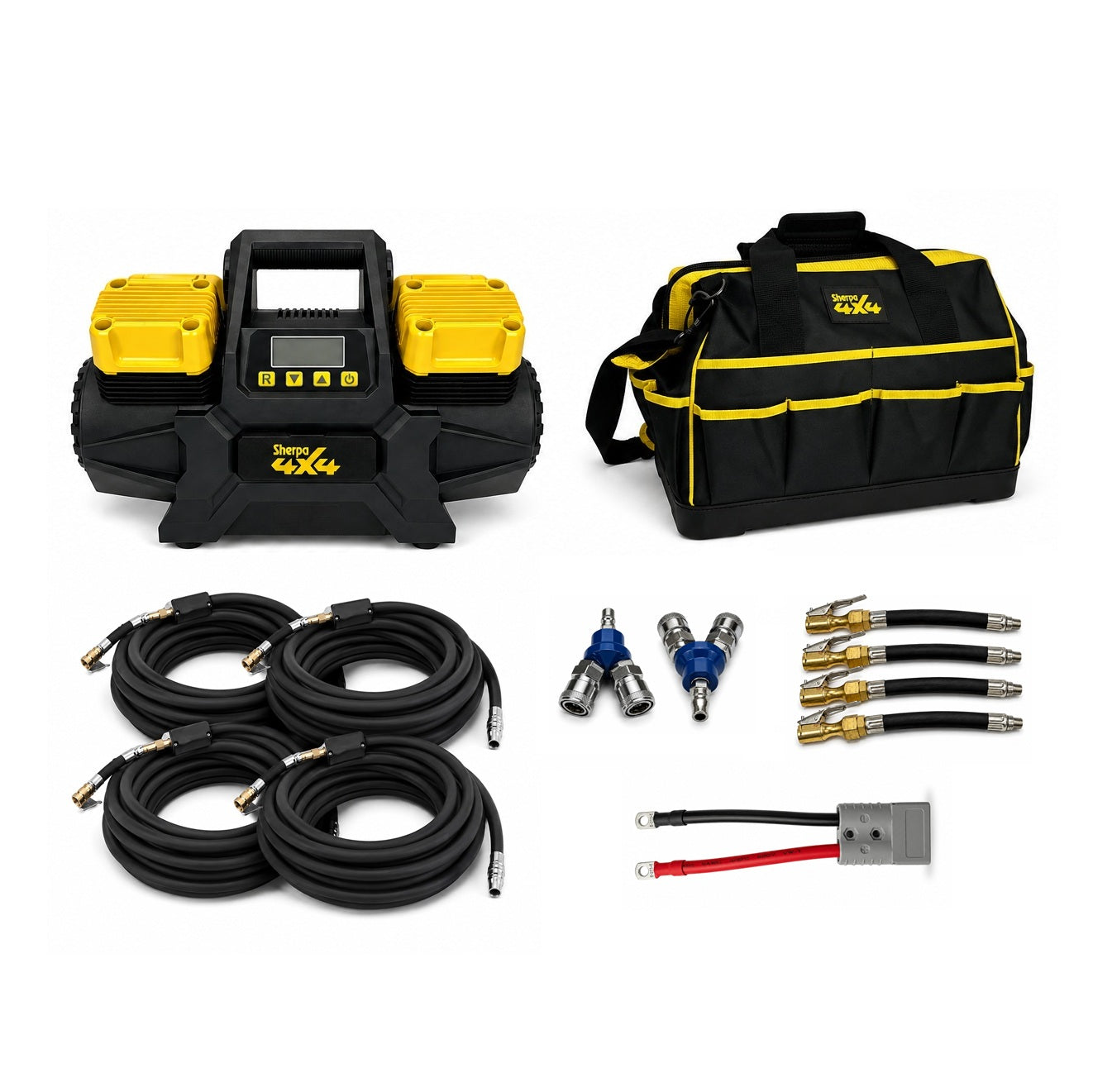

WHAT'S INCLUDED

• 1 × Sherpa 4x4 BIG V4 400L/min Compressor
• 1 × Heavy-Duty Compressor Carry Bag

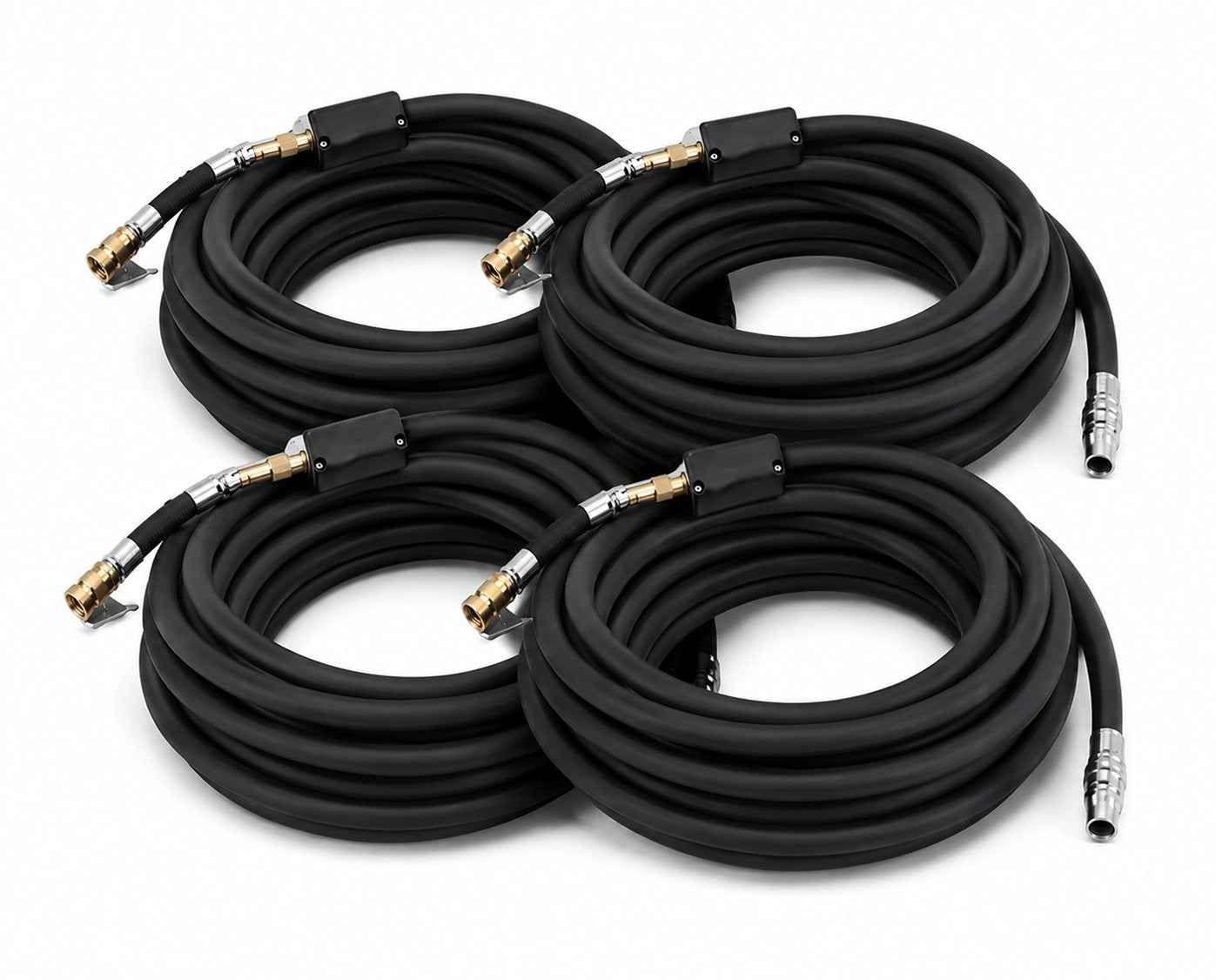

• 4 × 7m Air Hoses
• 4 × Non-Return Valve / Tyre Inflation Adaptors
• 2 × Y-Connectors
• 1 × Heavy-Duty 120A Battery Connection Cable
• Heavy-Duty 5AWG Compressor Power Leads
• 120A Anderson-Style Power Connection
• 125A Inline Fuse – 12V version
• 24V to 13.8V DC/DC Converter and Battery Connection Leads – 24V version
