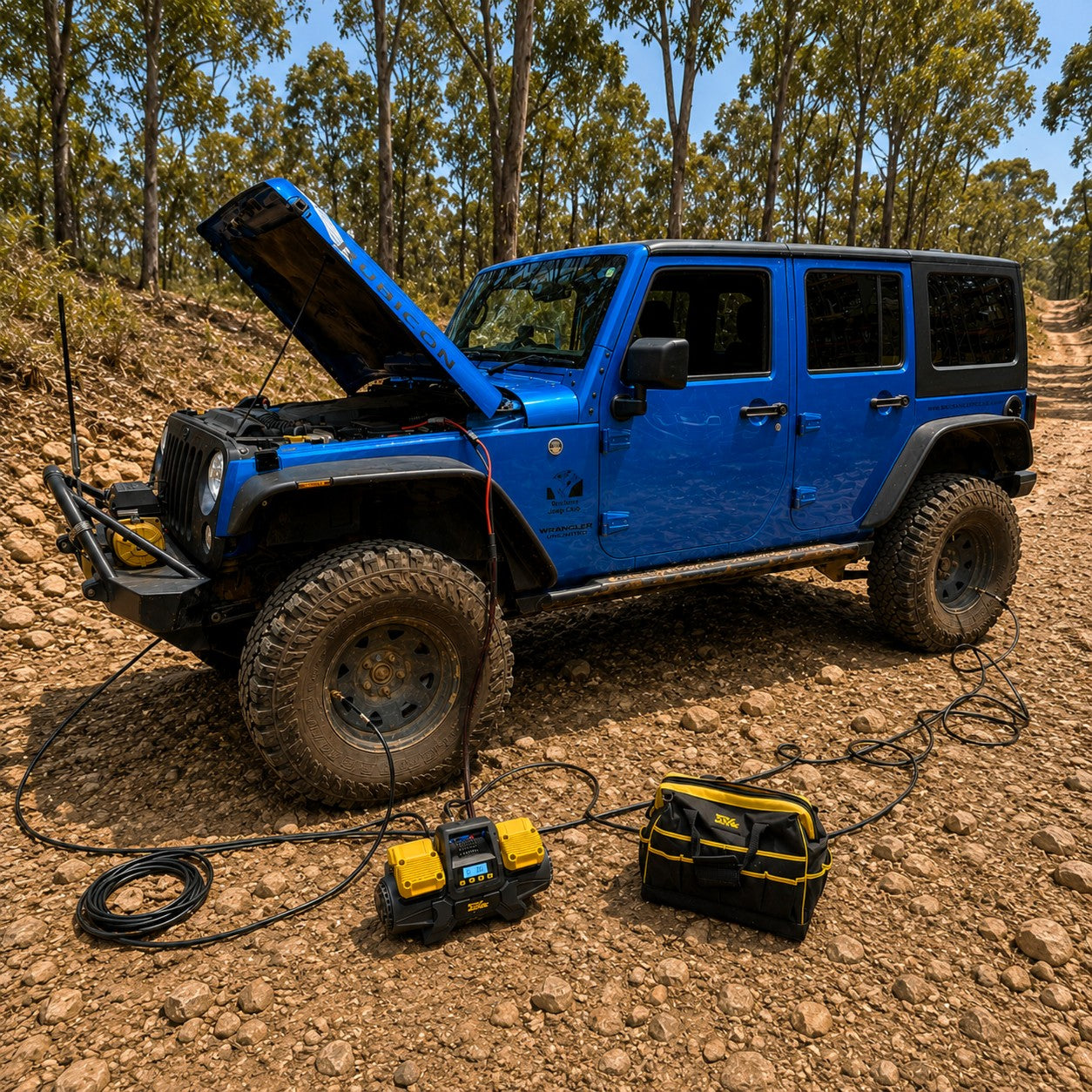

Air Up All Four Tyres at Once: Introducing the Sherpa 4x4 BIG V4 Quad-Air Bundle

When you’ve finished a day on the beach, tackled a rough off-road track or spent hours exploring at reduced tyre pressures, there’s one job standing between you and the bitumen: airing back up.

For most 4WD owners, that means moving from wheel to wheel, connecting and disconnecting hoses and waiting for each tyre to reach road pressure.

The Sherpa 4x4 BIG V4 Quad-Air Bundle changes the process completely.

With a massive 400L/min maximum free-air delivery, four-cylinder compressor and a dedicated four-hose inflation system, the BIG V4 Quad-Air Bundle allows you to connect all four tyres, select your target pressure and inflate the entire vehicle simultaneously.

And the performance numbers speak for themselves:

Four 37" tyres. From 9 to 38 PSI. In just over 5 minutes. All four at the same time.

Why Inflate Four Tyres at Once?

Anyone who regularly airs down knows the routine.

Dropping tyre pressures can make a substantial difference when driving on sand, corrugations and challenging off-road terrain. But once you're ready to return to the road, those tyres need to come back up.

Traditional portable compressor setups generally require you to inflate one tyre at a time. Even with a fast compressor, you're still moving around the vehicle, swapping the hose between tyres and checking pressures along the way.

Quad-Air is designed to remove that hassle.

Four individual 7m rubber air hoses connect the BIG V4 to all four tyres. Air hose splitters distribute the compressor's high-volume airflow through the system, while individual non-return valve/tyre inflation adaptors help manage airflow at each tyre.

Once everything is connected, you can inflate all four tyres together.

That means less walking around the vehicle, fewer hose changes and consistent inflation across the vehicle.

The BIG V4: 400L/min of Serious Airflow

A four-tyre inflation system is only as useful as the compressor driving it.

That's where the BIG V4 comes in.

The heart of the Quad-Air Bundle is Sherpa's four-cylinder, oil-free portable compressor, capable of delivering up to 400L/min (14 CFM) maximum free-air delivery.

Its four 50mm cylinders are powered by a 1200W system drawing up to 100A, backed by heavy-duty 5AWG power cables, 120A Anderson-style connections and a 125A inline fuse.

The result is a compressor designed to move the volume of air required by large 4WD, touring and truck tyres — and enough airflow to make simultaneous four-tyre inflation genuinely practical.

Four 37" Tyres: 9–38 PSI in Just Over 5 Minutes

This is where the BIG V4 Quad-Air Bundle really shows what it can do.

In testing, the system inflated:

• 4 × 37" tyres simultaneously from 9–38 PSI in just over 5 minutes
• 1 × 37" tyre from 9–38 PSI in just over 2 minutes 30 seconds
• 1 × 215/60R16 tyre from 0–35 PSI in under 50 seconds

For anyone running large off-road tyres, that four-tyre figure is particularly significant.

Rather than chasing outright speed on a single tyre, Quad-Air takes advantage of the BIG V4's enormous airflow by distributing it across the entire vehicle.

Connect four tyres. Set the pressure. Start the compressor.

Just over five minutes later, four 37s can go from 9 PSI to 38 PSI.

Actual inflation times will naturally vary with tyre size and construction, starting and finishing pressure, electrical supply, ambient temperature and other operating conditions.

Set Your Pressure and Let the BIG V4 Do the Work

High airflow is only part of the story.

The BIG V4 also incorporates pre-set pressure control, with a selectable pressure range from 3–150 PSI.

Instead of repeatedly checking a gauge while inflating, you can select your target pressure directly at the compressor.

Combined with Quad-Air, it makes the airing-up process remarkably straightforward:

Connect all four tyres → Set your target PSI → Start inflation → Let the BIG V4 do the work.

It's particularly useful at the end of a long day off-road when the last thing you want to do is spend unnecessary time crouched beside four tyres.

Built for Big 4WDs — and Bigger Touring Vehicles

Quad-Air isn't limited to conventional 4WDs.

The combination of four 7m hoses, high-volume airflow and 12V and 24V configurations makes the system suitable for a wide range of larger vehicles and touring setups.

That includes heavily modified 4WDs, expedition vehicles, trucks and other vehicles where tyre size and vehicle length can make conventional portable compressor setups inconvenient.

For 24V vehicles, the BIG V4 Quad-Air Bundle is available with a 24V to 13.8V DC/DC converter, together with the required heavy-duty battery connection leads.

So whether you're running a conventional 12V 4WD or a larger 24V off-road truck, there's a BIG V4 configuration designed to suit.

Designed for Australian Off-Road Conditions

Producing serious airflow requires serious electrical and thermal management.

The BIG V4 uses substantial cooling fans and heat-dissipating cylinder fins to help manage temperature during demanding inflation jobs. The compressor also incorporates thermal overload and over-pressure protection.

Heavy-duty 2.2m 5AWG power cables help minimise voltage drop under load, while the compressor and Quad-Air accessories pack into the supplied heavy-duty carry bag when the job is finished.

It's a system intended to live in the vehicle and be ready when tyre pressures need to change.

An Important Note About Power Supply

The BIG V4 is a high-current compressor, and correct electrical supply is essential.

IMPORTANT: THE VEHICLE'S ENGINE MUST BE RUNNING DURING COMPRESSOR OPERATION.

The BIG V4 must be operated with the vehicle battery being actively charged by the vehicle's alternator. Do not operate the compressor from a stand-alone battery that is not being charged. Excessive voltage drop may damage the compressor or electrical components and may void the warranty.

For 24V installations using the supplied 24V-to-13.8V DC/DC converter, the vehicle engine must also remain running while the compressor is operating.

What's Included in the Quad-Air Bundle?

This isn't simply a BIG V4 with an extra hose. It's a complete four-tyre inflation package.

The bundle includes the Sherpa 4x4 BIG V4 400L/min compressor, heavy-duty carry bag, four 7m rubber air hoses, four non-return valve/tyre inflation adaptors, two air hose splitters, heavy-duty battery connection cable, 5AWG compressor power leads with heavy-duty alligator clamps and Anderson-style connections, and a 125A inline fuse. The 24V version also includes the required DC/DC converter and battery connection leads.

Less Time Airing Up. More Time on the Track.

The idea behind the BIG V4 Quad-Air Bundle is simple: if you've got enough compressor, why inflate your tyres one at a time?

By combining the BIG V4's 400L/min maximum airflow, pre-set pressure control and heavy-duty construction with a purpose-built four-tyre hose system, Sherpa has created an inflation setup aimed squarely at serious 4WD and touring use.

No constantly moving the compressor.

No swapping one hose between four wheels.

No repeatedly checking four individual tyre pressures.

Connect the vehicle, select the pressure and put that 400L/min of airflow to work.

And when you're running big rubber, the number that matters most is hard to ignore:

Four 37" tyres. 9–38 PSI. Just over 5 minutes.

That's what Quad-Air is all about.
