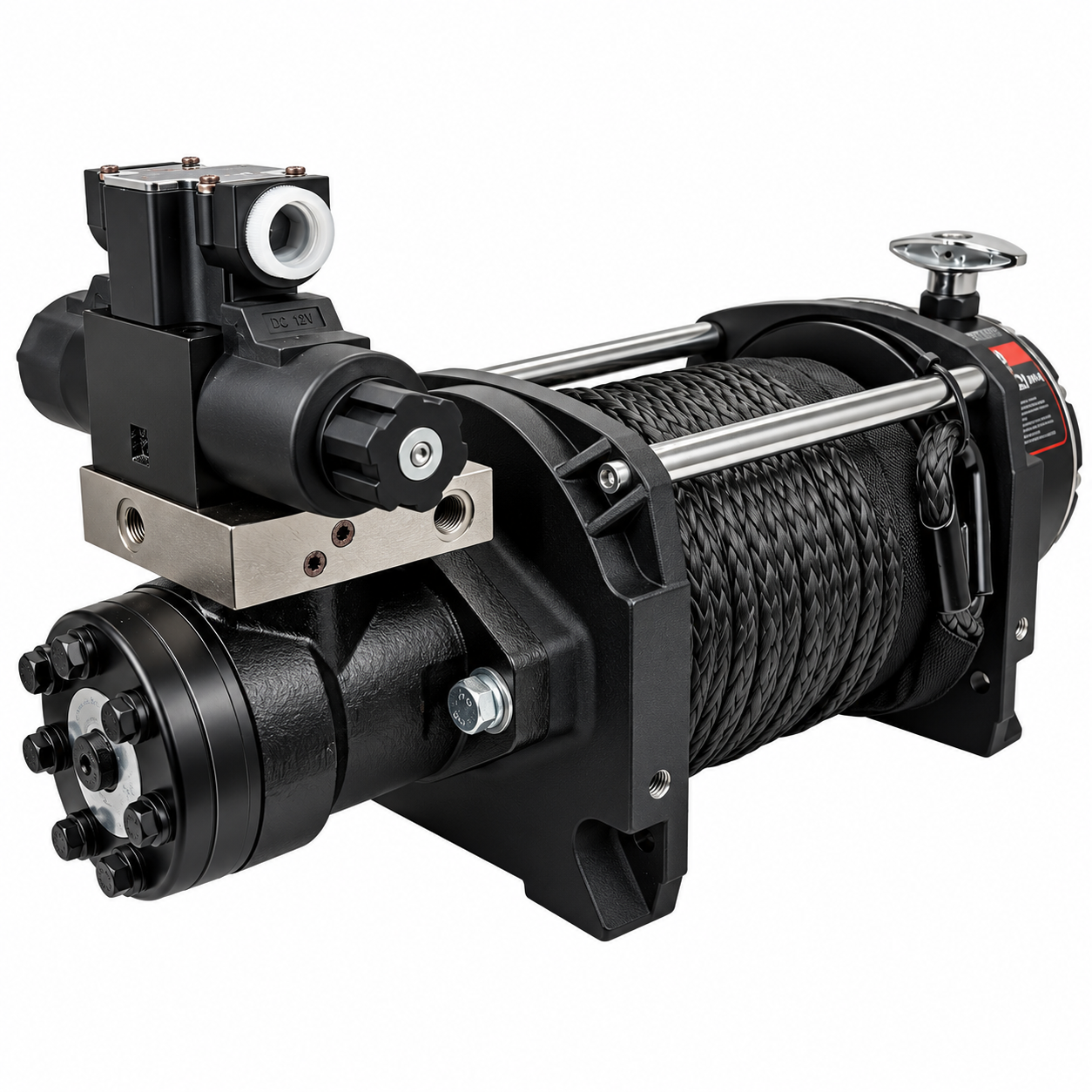

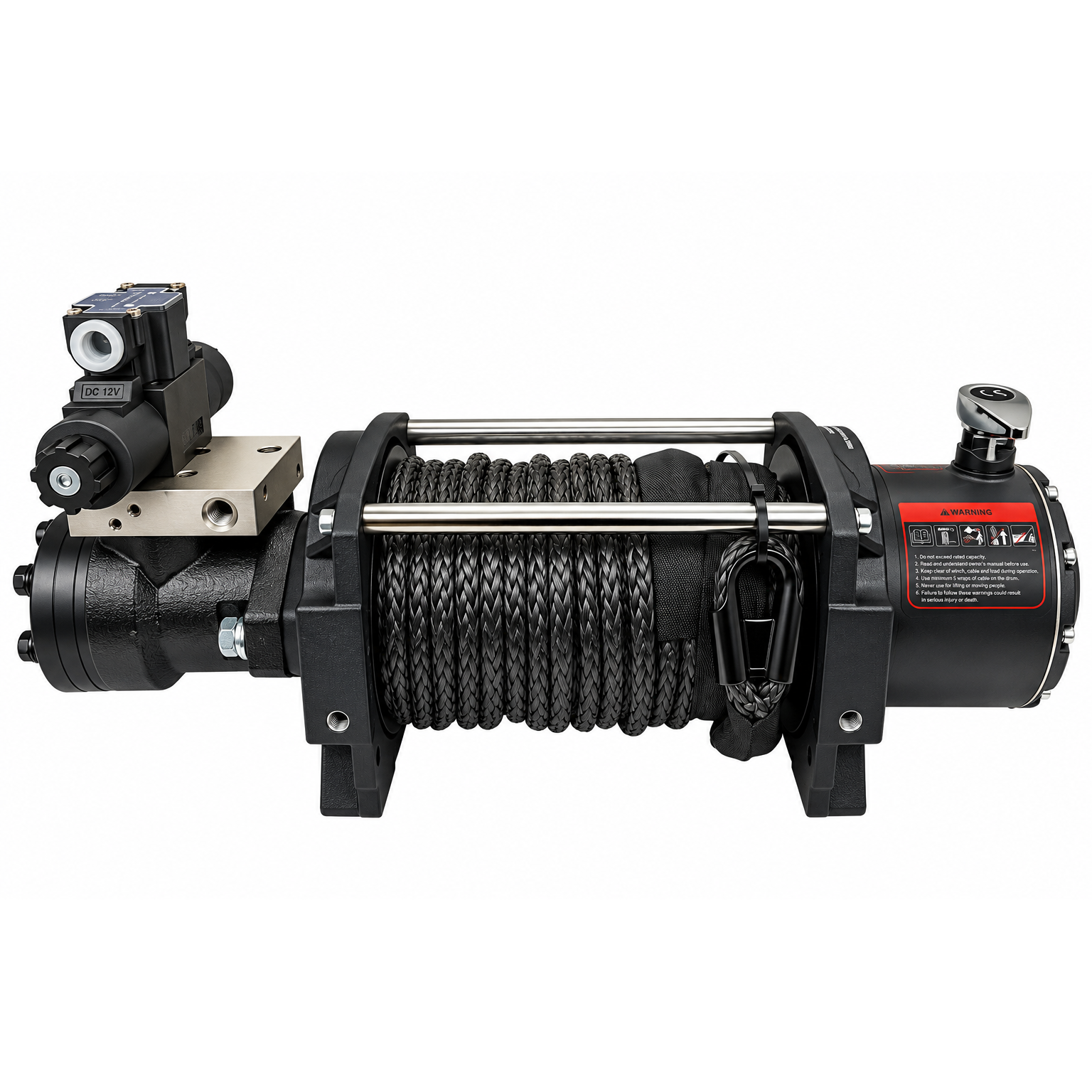

Hydraulic winches are attractive for vehicles or machinery that already have a suitable hydraulic power system and need long-duration pulling without relying on very high battery current. They are common in commercial recovery, heavy transport, forestry and plant applications where duty cycle can be more important than installation simplicity. Electric winches are usually easier to retrofit to a conventional 4WD because they only need an appropriate battery, cables and controls. A hydraulic system requires enough flow and pressure, a suitable control valve, hoses, filtration and oil cooling. The decision should be based on available hydraulic power, required line pull, duty cycle and how the equipment will be used, not on winch capacity alone.

Obtain the winch manufacturer's required flow range, maximum pressure and motor type, then compare those figures with the machine's actual hydraulic output. Pressure primarily determines available torque while flow influences line speed, but both must remain within the winch motor and valve limits. The return circuit must also be large enough to prevent excessive back-pressure. Existing auxiliary hydraulics may be rated adequately on paper yet already supply other functions or produce insufficient flow at engine idle. Hose size, couplings, relief-valve setting, filtration and oil temperature should be checked as a system. A hydraulic technician should verify the circuit before connecting a high-load winch to unknown or shared hydraulic ports.

Most vehicle and industrial winches require a load-holding brake or other means of preventing the drum from overrunning when hydraulic flow stops, but the exact arrangement depends on winch design. Do not assume hydraulic resistance alone will hold a suspended or tensioned load. A purpose-designed brake, counterbalance arrangement or gearbox brake may be required. The control valve also needs the correct centre configuration so the motor behaves safely in neutral. If the application involves raising or lowering loads, additional regulatory and engineering requirements may apply. The safest approach is to use the brake and control arrangement specified by the winch manufacturer rather than building a circuit from generic hydraulic components.

Low hydraulic pressure, insufficient flow, excessive return-line restriction and hot thin oil are common causes. Begin by checking actual pressure and flow under load rather than assuming the pump meets its nameplate specification. A partially closed valve, undersized quick coupler, blocked filter or hose that is too small can create significant pressure loss. Internal leakage in the winch motor or control valve can also reduce torque. If the winch has good speed but stalls too easily, pressure may be the issue; if it has good pull but is consistently slow, flow is more likely. Do not increase the relief-valve setting beyond component ratings to mask an undersized system.

Inspect hydraulic hoses for abrasion, cracking, leaks and damaged fittings, especially where they flex near the winch. Check oil level, filtration and operating temperature and investigate contamination before it damages the motor or valve. Mounting bolts, drum bearings, rope condition and the brake need the same mechanical inspection as any other winch. Keep couplings capped when disconnected so dirt does not enter the circuit. A slow leak on the suction side of a hydraulic pump can draw air without leaving an obvious oil puddle, leading to noisy operation and poor performance. Any hose working near its pressure limit or showing wire reinforcement should be replaced rather than temporarily wrapped or clamped.
