Winch Anchor

SKU : SGA01
Price : $269.00 (inc. GST)

Quantity :
Shipping costs are based on the weight, size and destination of your order.
There is a freight estimator on the cart so add your
products and view cart to see your shipping estimate.

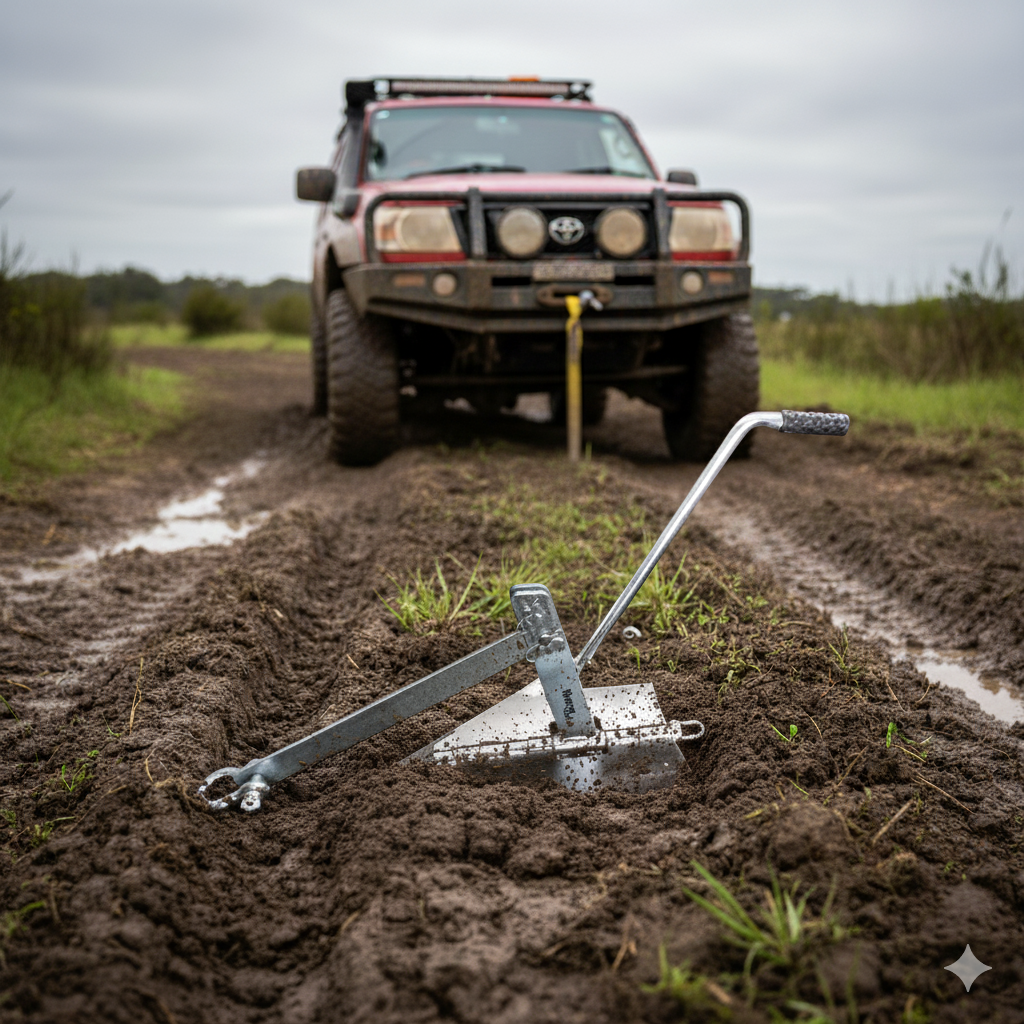

Sherpa 4x4 Winch / Ground / Sand Anchor



- Don't get stuck without one!

- Includes carry bag



Now produced in heavy duty, galvanised steel!



  • Ideal for vehicle recovery when there are no other convenient anchor points or trees.
  • Use in sand, mud, soil and gravel.
  • Angled blade gives the anchor a self digging action when pressure is applied
  • Use with rope or cable winches
  • Packs away for easy storage
  • Steel construction
  • Heavy duty pins



Winch Anchor Specifications:

  • Load Capacity - 12,000 Lbs
  • Includes U-shackle
  • Blade dimensions:  Length 50cm - Width 60cm
  • Weight: 16kg
  • Includes Sherpa 4x4 Offroad carry bag rated to 100+kg
  • 3 Year Warranty

Sherpa 4x4 Offroad Anchor

Winch Anchor Instructions:

Step 1:
Remove the R pin from the handle.

Step 2:
Now fold down the anchor wings.

Step 3:
Unthread the bow shackle pin and remove.

4WD Winch Anchor Accessories

Step 4:
Remove the handle from the anchor.

Step 5:
With the wings in the open position slide the shank forward.

Step 6:
Reinstall the bow shackle.

Step 7:
Attach the hand to the operating position and secure in place with the R pin.

Step 8:
Attach the winch hook to the bow shackle.

Ground Mud Sand Winch Anchor Australia

You are now ready to recover your vehicle!

Packing up the ground anchor is the opposite of assembly.

Safety Pointers:
- Always exercise precaution as high tensile loads are in play.
- Always use winch dampeners.
- Do Not exceed the load rating of the anchor.
- Do Not stand between the anchor and the vehicle when winching.
- Always check the winch anchor for signs of stress, fatigue or damage before use.
