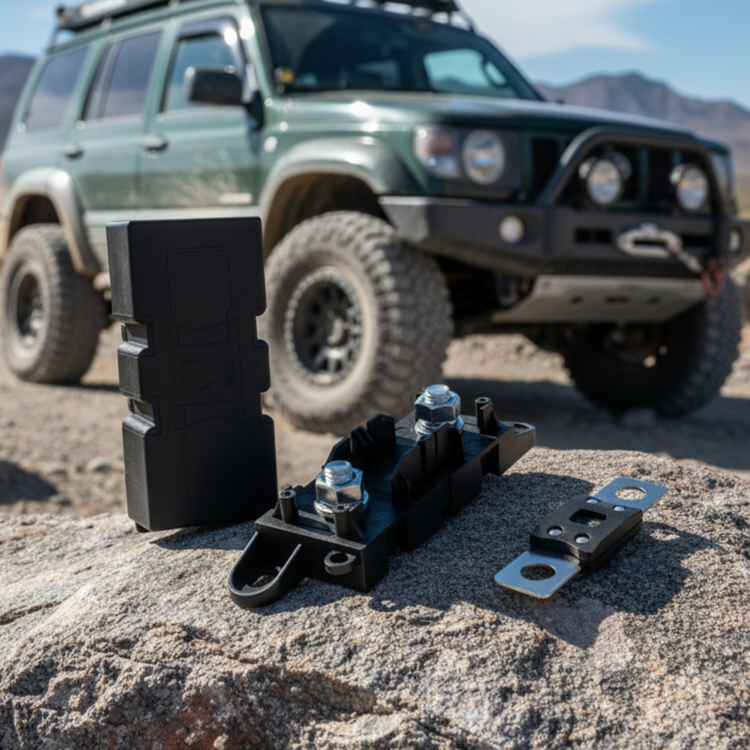

Fuse and Holder 500A Inline
SS500A
$59.00
Suitable for use with 4x4 winches, Boat trailer winches and other high load applications. The inline fuse will protect your cables and vehicle from short circuits which has potential to damage electrics and start fires.
- Includes one fuse.
-
Kit includes 1 x 500A fuse and 1 x Holder. Additional spare fuses available via the options at the top of this page.
Consider what would happen if you were in an accident and the heavy power cable running from your battery to your winch was pinched between your bull-bar and your chassis? The battery would essentially short circuit and get extremely hot. The insulation would likely melt from the cable and a fire could start. For this reason, it is always recommended to install your winch with a isolation switch or a fuse in the main power circuit.
A fuse has some advantages over isolation switches in that you do not need to exit your vehicle and pop the bonnet to align power to your winch. The fuse also protects your vehicle in the unlikely scenario where the winch motor short circuits during operation. A fuse has some disadvantages over an isolation switch in that your winch is always powered meaning it's accessible for tampering when your vehicles unattended. Additionally, if a fuse does pop, it needs to be replaced as opposed to simply reset. In an ideal world, users will install a fuse and a isolation switch to protect your winch and vehicle from the worst case scenarios considered possible.
-
Specification Value Rating 500 Amps Connections M8 bolt and nuts
Finish
Nickle plated
Dimensions approx 130 x 40 x 40mm
-
Grunter Boat Winch Owner's Manual
Winch Dimensions:
'Mustang' 9,500Lb with 28m spool
'Brumby' 10,000Lb high speed winch
'Steed' 17,000Lb with 28m spool
'Steed' 17,000Lb with 45m spool
'Mule' 17,000Lb dual motor winch with 45m spool
'Stallion' 25,000Lb winch with 30m spool
'Grunter' boat trailer winches (Standard & HP Models)
'Grunter' Boat Trailer Winch Mounting Bracket
ATV Winch 4,500Lb Mounting Plate
Wiring Diagrams:
Dual Motor Winch Wiring Diagram
Winch Weights:
Winch Type Other 92ft (28m) Cable 92ft (28m) Rope 100ft (30m) Rope 100ft (30m) Cable 148ft (45m) Cable 148ft (45m) Rope ATV Winch 4,500Lb 15lb (7 kg) X X X X X X 9,500Lb X 57lb (26 kg) 42lb (19 kg) X X X X 10,000Lb (High Speed) X X 50lb (23 kg) X X X X 12,000Lb X 66lb (30 kg) 50lb (23 kg) X X X X 17,000Lb Single Motor X 60lb (30 kg) 50lb (23 kg) X X 88lb (40 kg) 57lb (26 kg) 17,000Lb Dual Motor X X X X X 101lb (46 kg) 71lb (32 kg) Tow Truck Winch 20,000Lb X 100lb (45 kg) 66lb (30 kg) X X X X 25,000Lb X X X 68lb (31 kg) 104lb (47 kg) X X
Cable Data:Winch Type Cable Type Length Cable Size Grunter Boat Trailer Winches (All models) Positive (Power)
7m (~23ft) 50mm² Negative (Earth)
3m (~10ft) 32mm² Control Box Cables
Various <1m (< ~3ft) From winch to control box only. 25mm² Grunter Cable Upgrade (Postive cable only) Positive (Power)
10m (~32ft) 50mm² 4x4 Winches (All models)
Mustang, Colt, Steed, Mule, Brumby, Stallion, Tow Truck winch models.
Positive (Power)
1.8m (~6ft) 25mm² Negative (Earth)
1.8m (~6ft) 25mm² Control Box Cables
Various <1m (< ~3ft) From winch to control box only. 25mm² 4x4 Winch Cable Upgrade Positive (Power)
3m (~10ft) 25mm² Negative (Earth)
3m (~10ft) 25mm² Big Air - Air Compressors (All models) Positive (Power)
3m (~10ft) 16mm² Negative (Earth)
3m (~10ft) 16mm²
