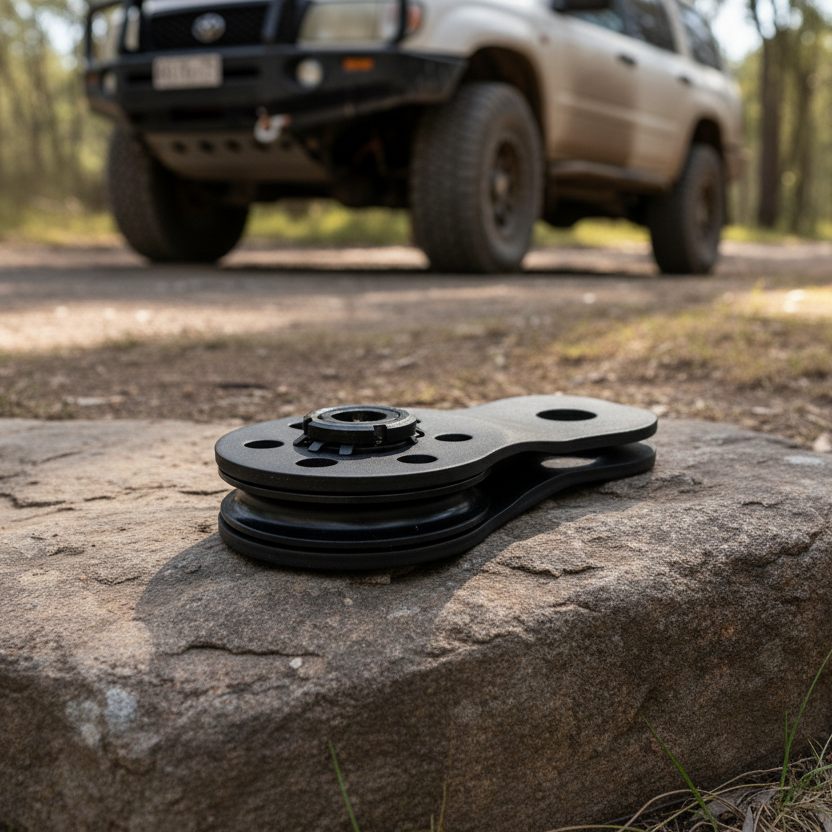

Sherpa 4x4 Snatch Block 10T
SSB10MT
$79.00$119.00
Use a 4WD snatch block to double the pulling force of your winch. Also handy for winching around trees or in difficult situations. Ideal for use with both synthetic and cable winches.
- Includes carry bag.
- Use with steel cable or synthetic ropes.
-
Includes grease nipple. Beware of cheap copies, they won't handle the high loads of powerful winches.
- Suitable for a load of 10,000kg or 22,045Lb
- Heavy duty scissor design

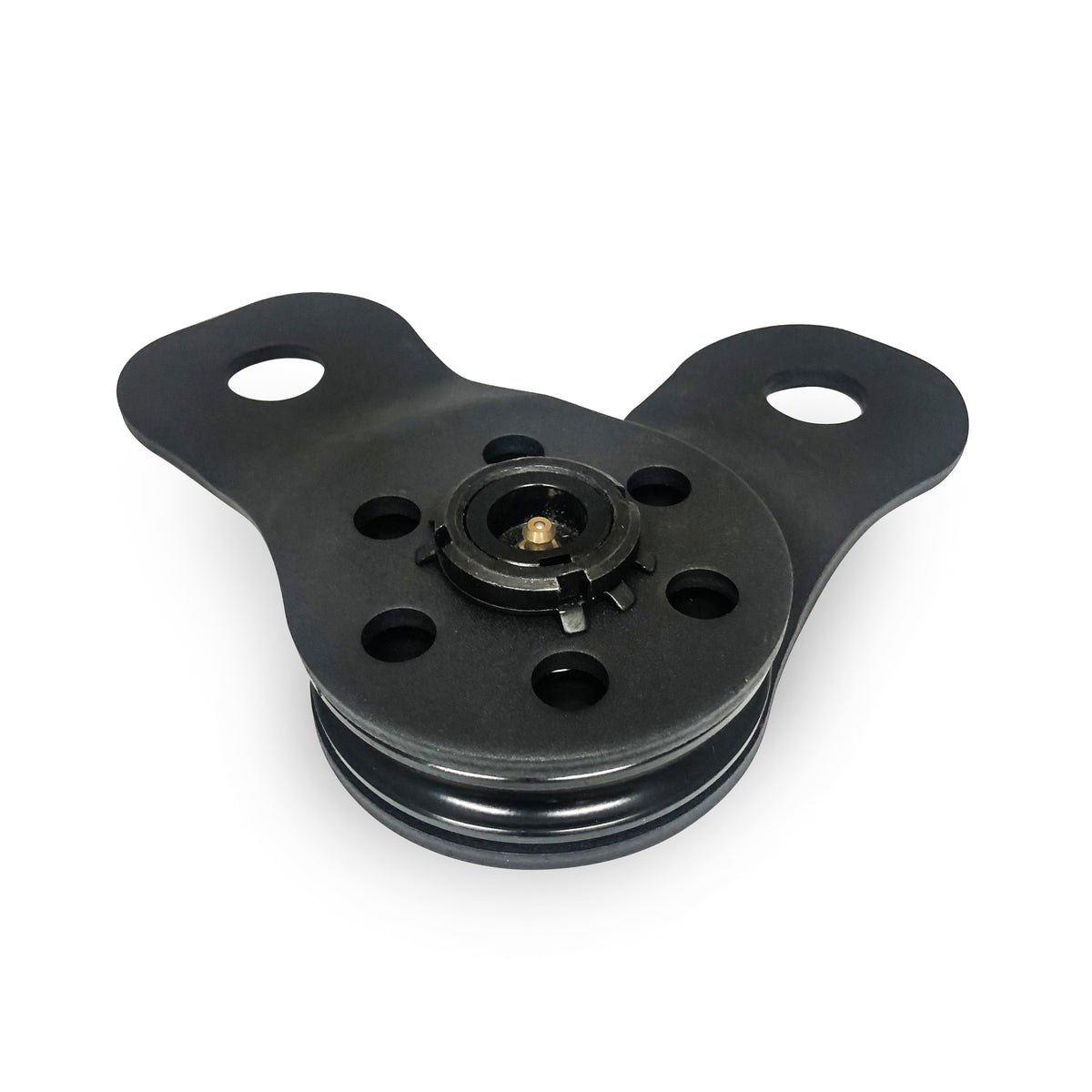

- Grease nipple for lubricating the spindle
- Simple design makes for easy cleaning and maintenance
- 5/16" to 1/2" cables/ropes
- Long lasting powder coat

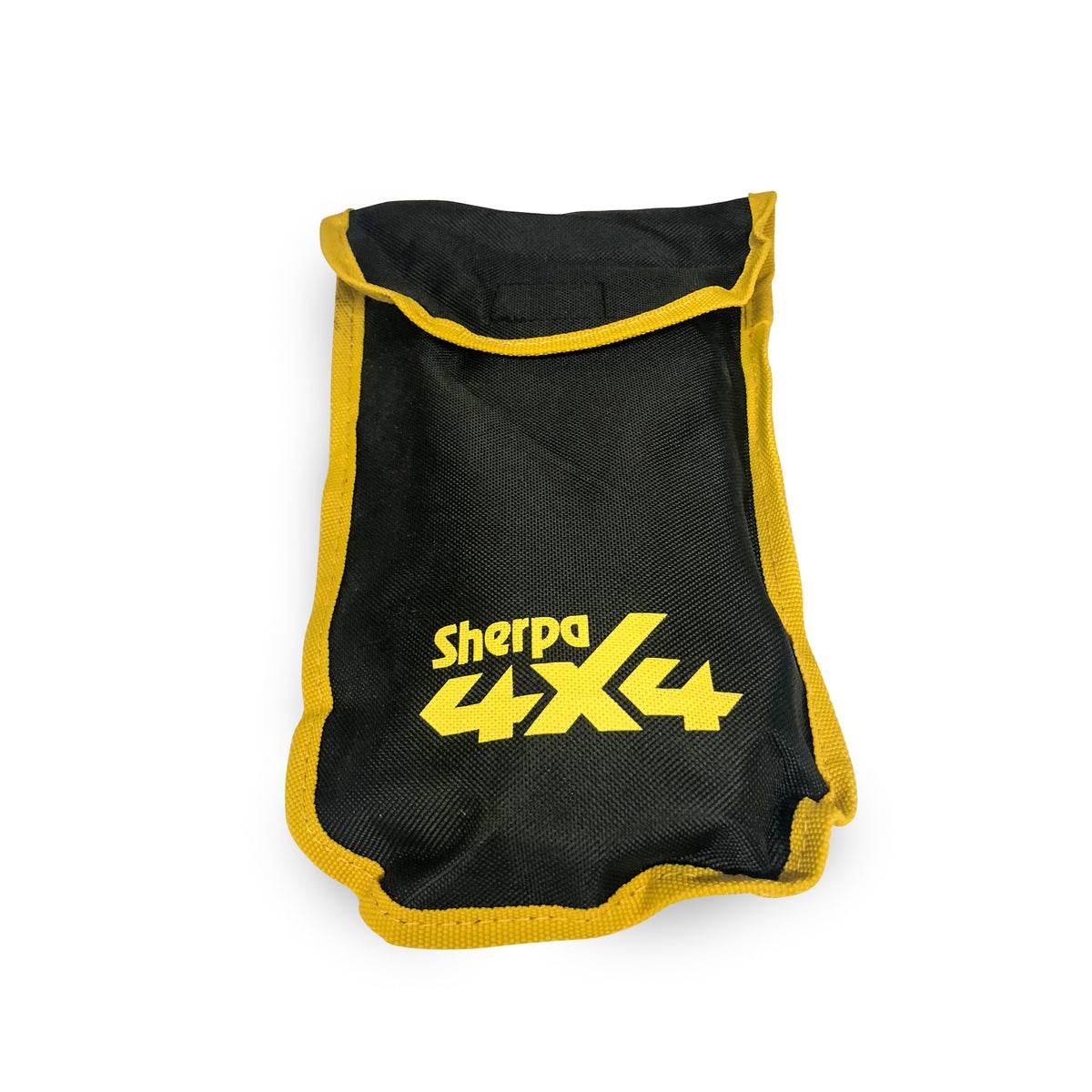

- Includes carry pouch
Note: Special care needs to be taken when using with synthetic ropes as there is potential to pinch rope between the pulley and plate if not monitored.
-
