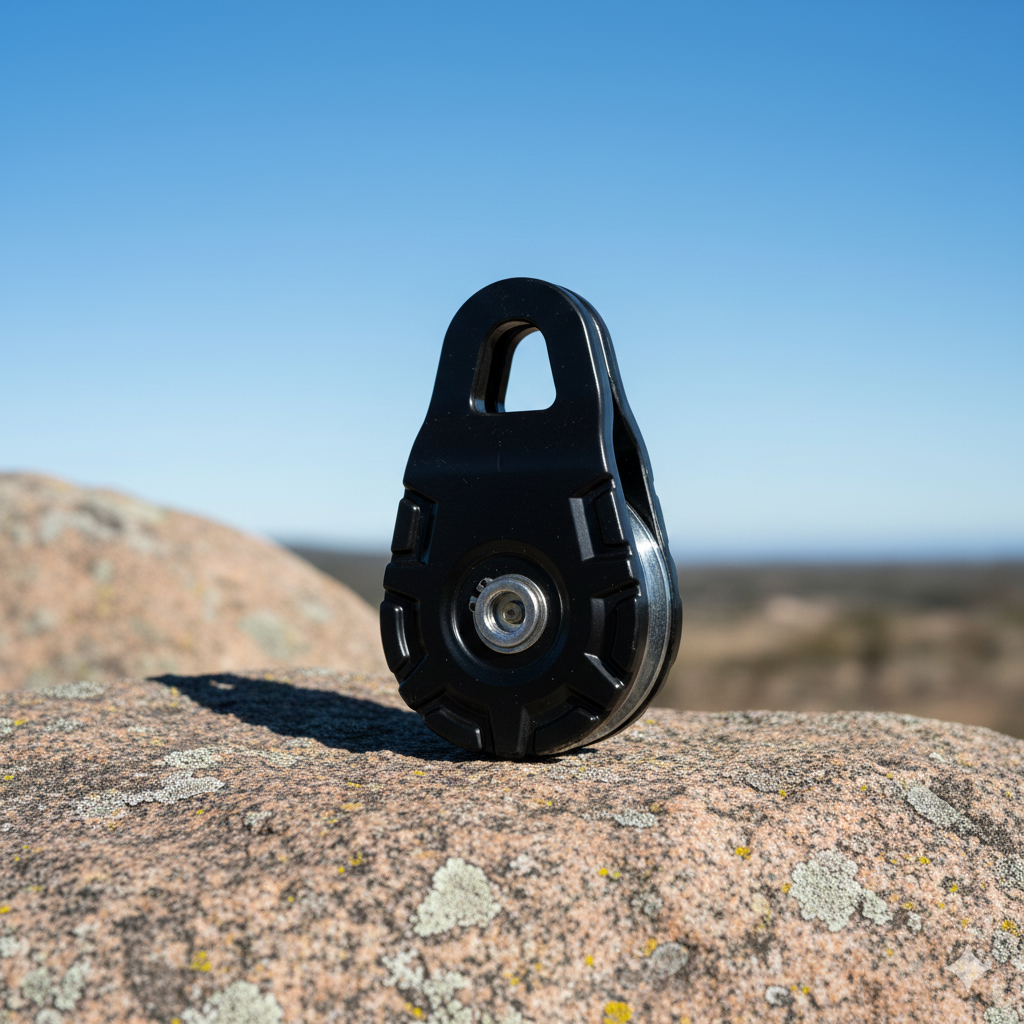

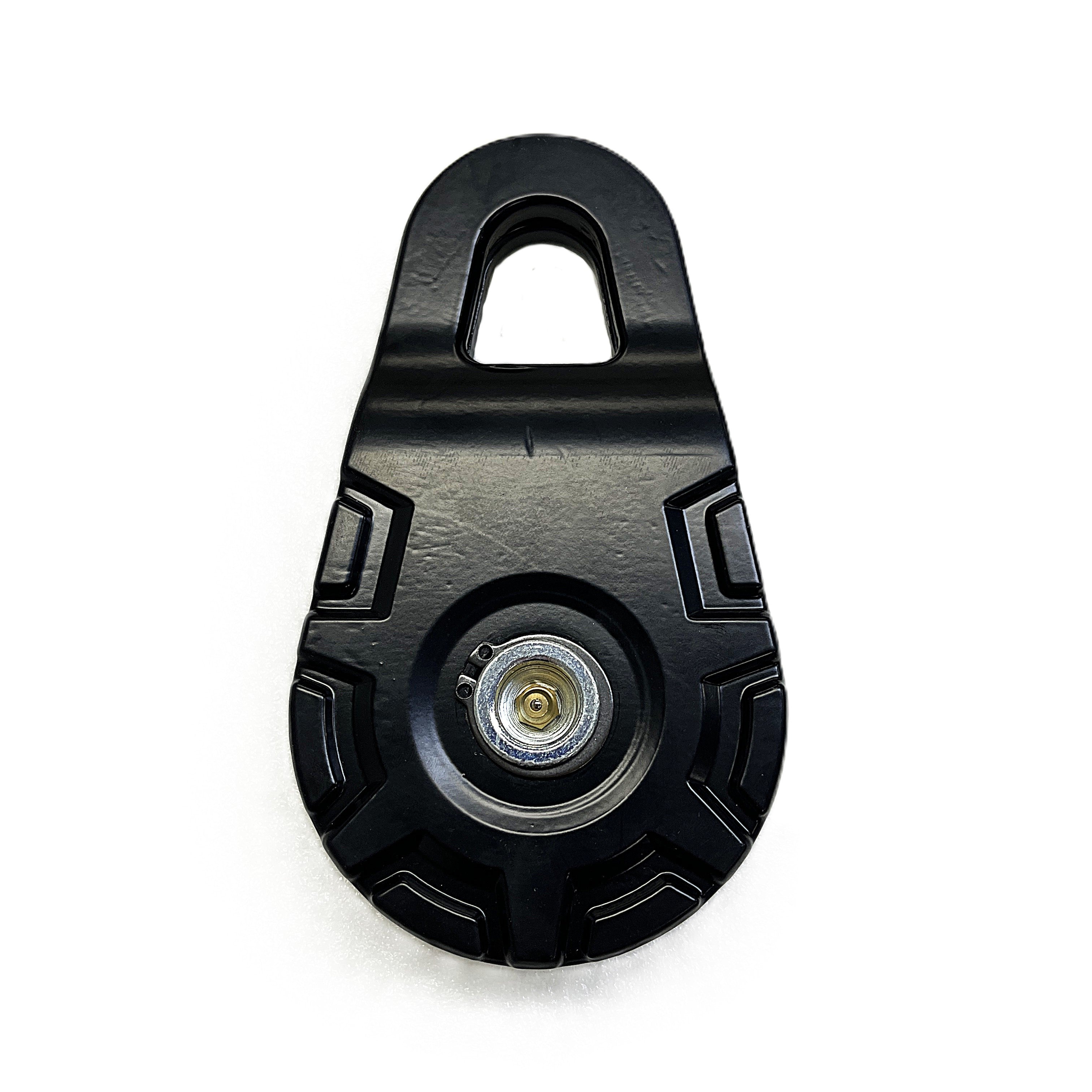

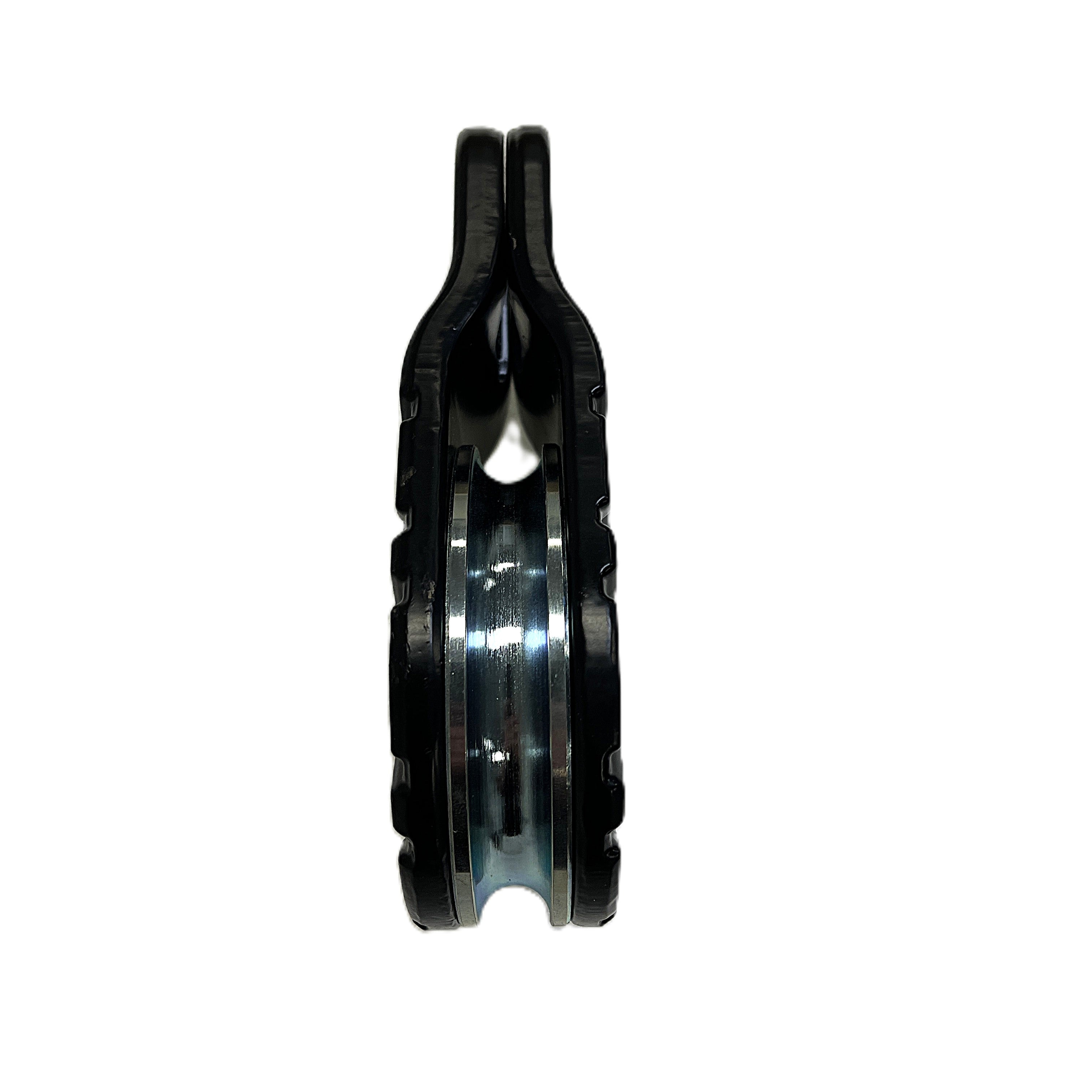

Sherpa 4x4 Snatch Block 10T
SSB10MT
$59.00$79.00
Use a 4WD snatch block to double the pulling force of your winch. Also handy for winching around trees or in difficult situations. Ideal for use with both synthetic and cable winches.

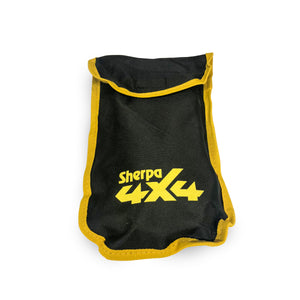

- Includes carry bag.
- Use with steel cable or synthetic ropes.
-
Includes grease nipple. Beware of cheap copies, they won't handle the high loads of powerful winches.
- Suitable for a load of 10,000kg or 22,045Lb

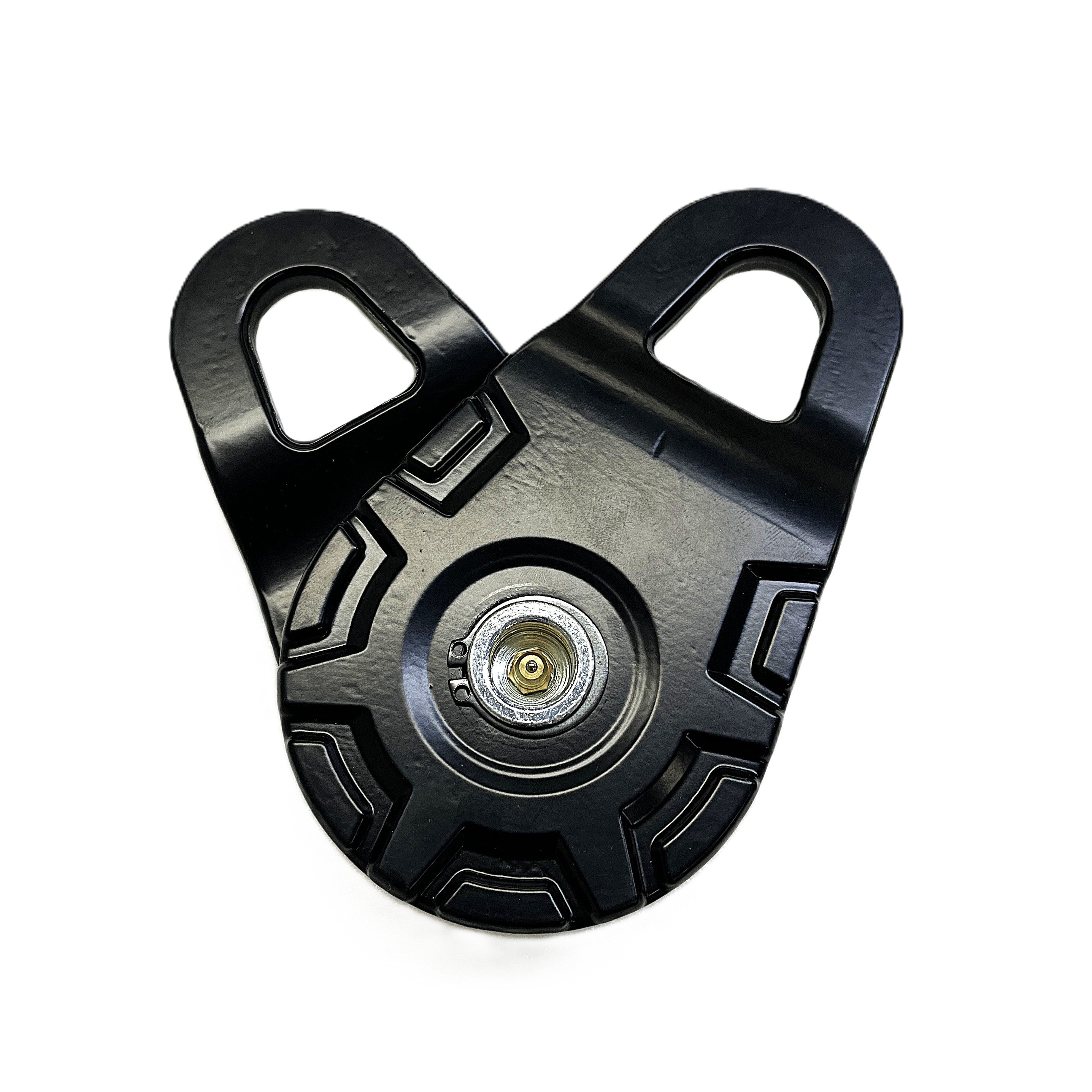

- Heavy duty scissor design
- Grease nipple for lubricating the spindle
- Simple design makes for easy cleaning and maintenance
- 5/16" to 1/2" cables/ropes
- Long lasting powder coat
- Includes carry pouch
Note: Special care needs to be taken when using with synthetic ropes as there is potential to pinch rope between the pulley and plate if not monitored.
-
Grunter Boat Winch Owner's Manual
Winch Dimensions:
'Mustang' 9,500Lb with 28m spool
'Brumby' 10,000Lb high speed winch
'Steed' 17,000Lb with 28m spool
'Steed' 17,000Lb with 45m spool
'Mule' 17,000Lb dual motor winch with 45m spool
'Stallion' 25,000Lb winch with 30m spool
'Grunter' boat trailer winches (Standard & HP Models)
'Grunter' Boat Trailer Winch Mounting Bracket
ATV Winch 4,500Lb Mounting Plate
Wiring Diagrams:
Dual Motor Winch Wiring Diagram
Winch Weights:
Winch Type Other 92ft (28m) Cable 92ft (28m) Rope 100ft (30m) Rope 100ft (30m) Cable 148ft (45m) Cable 148ft (45m) Rope ATV Winch 4,500Lb 15lb (7 kg) X X X X X X 9,500Lb X 57lb (26 kg) 42lb (19 kg) X X X X 10,000Lb (High Speed) X X 50lb (23 kg) X X X X 12,000Lb X 66lb (30 kg) 50lb (23 kg) X X X X 17,000Lb Single Motor X 60lb (30 kg) 50lb (23 kg) X X 88lb (40 kg) 57lb (26 kg) 17,000Lb Dual Motor X X X X X 101lb (46 kg) 71lb (32 kg) Tow Truck Winch 20,000Lb X 100lb (45 kg) 66lb (30 kg) X X X X 25,000Lb X X X 68lb (31 kg) 104lb (47 kg) X X
Cable Data:Winch Type Cable Type Length Cable Size Grunter Boat Trailer Winches (All models) Positive (Power)
7m (~23ft) 50mm² Negative (Earth)
3m (~10ft) 32mm² Control Box Cables
Various <1m (< ~3ft) From winch to control box only. 25mm² Grunter Cable Upgrade (Postive cable only) Positive (Power)
10m (~32ft) 50mm² 4x4 Winches (All models)
Mustang, Colt, Steed, Mule, Brumby, Stallion, Tow Truck winch models.
Positive (Power)
1.8m (~6ft) 25mm² Negative (Earth)
1.8m (~6ft) 25mm² Control Box Cables
Various <1m (< ~3ft) From winch to control box only. 25mm² 4x4 Winch Cable Upgrade Positive (Power)
3m (~10ft) 25mm² Negative (Earth)
3m (~10ft) 25mm² Big Air - Air Compressors (All models) Positive (Power)
3m (~10ft) 16mm² Negative (Earth)
3m (~10ft) 16mm²
