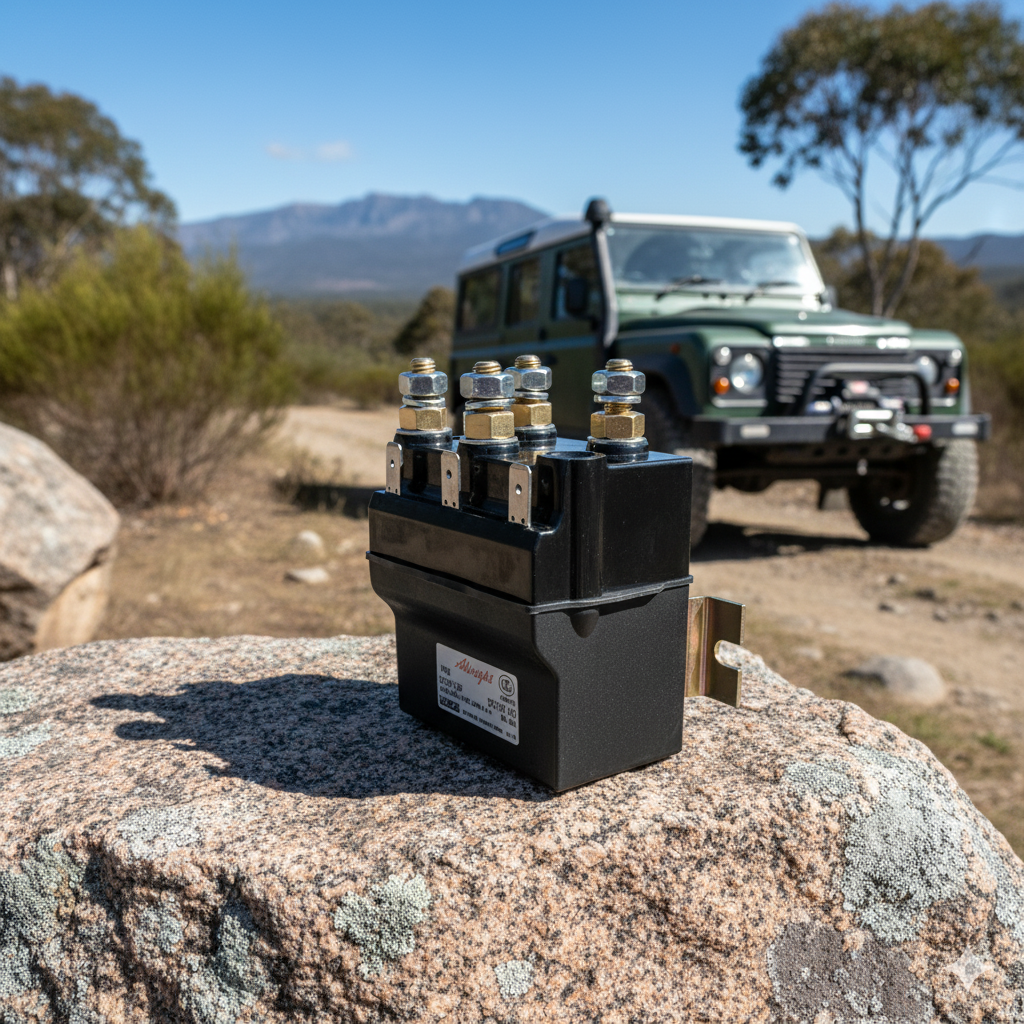

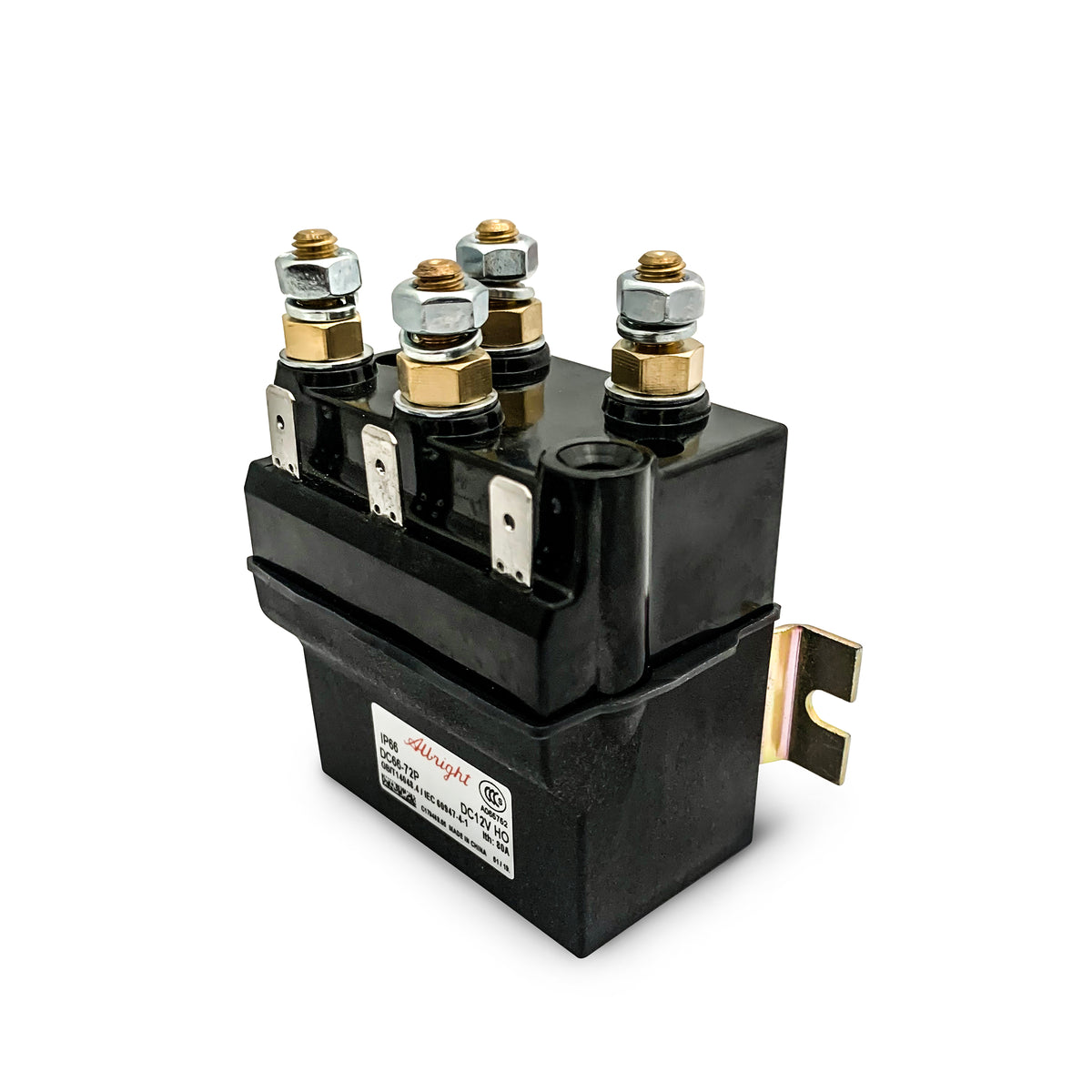

Albright Winch Solenoid
DC88-1055P-12V
$169.00$208.00
Sherpa 4x4 is proud to be the Australian distributors for Albright International DC contactors and winch solenoids. An ideal upgrade to your existing Warn winch or as a replacement for your Sherpa winch. Note: All Sherpa winches come fitted with an Albright solenoid as standard.
- Genuine Albright DC88P 1000 Series winch solenoids.
-
This is the current model Albright winch solenoid, the DC88P 1000 Series which supercedes the DC88P. With over 70 years experience in manufacturing contactors the Albright DC88P series of winch solenoids are the best on the market. Their superior duty cycle and water proofing makes them ideal for use in offroad conditions. Capable of withstanding high current loads these solenoids are suitable as a replacement solenoid for any of the Sherpa 4x4 winches.
- Available in 12V or 24V
- Dual direction solenoid compatible with most winches including various Warn models
- Compatible with all Sherpa 4x4 winches
- Compact monoblock construction
- Suitable for interrupted and uninterrupted loads
- Compatible with wireless remotes
- Ideal for series wound and permanent magnet DC motors
- Bi-directional for winches with release and retrieve motors (F1 & F2)
-
Solenoid Specification Value Max Current 800 Amps Voltage 12 Volt or 24 Volt DC models available Winch Loads 4,500lb to 18,000lb Dimensions Overall Height = 97mm
Main Body Height = 79mm
Overall Width = 100mm
Overall Depth = 61mm
Terminal Height = 18mm
Terminal Size = M8Warranty 12 Months For duty cycles at various loads please see the data sheet below.
Albright Winch Solenoid Data Sheet
-
Grunter Boat Winch Owner's Manual
Winch Dimensions:
'Mustang' 9,500Lb with 28m spool
'Brumby' 10,000Lb high speed winch
'Steed' 17,000Lb with 28m spool
'Steed' 17,000Lb with 45m spool
'Mule' 17,000Lb dual motor winch with 45m spool
'Stallion' 25,000Lb winch with 30m spool
'Grunter' boat trailer winches (Standard & HP Models)
'Grunter' Boat Trailer Winch Mounting Bracket
ATV Winch 4,500Lb Mounting Plate
Wiring Diagrams:
Dual Motor Winch Wiring Diagram
Winch Weights:
Winch Type Other 92ft (28m) Cable 92ft (28m) Rope 100ft (30m) Rope 100ft (30m) Cable 148ft (45m) Cable 148ft (45m) Rope ATV Winch 4,500Lb 15lb (7 kg) X X X X X X 9,500Lb X 57lb (26 kg) 42lb (19 kg) X X X X 10,000Lb (High Speed) X X 50lb (23 kg) X X X X 12,000Lb X 66lb (30 kg) 50lb (23 kg) X X X X 17,000Lb Single Motor X 60lb (30 kg) 50lb (23 kg) X X 88lb (40 kg) 57lb (26 kg) 17,000Lb Dual Motor X X X X X 101lb (46 kg) 71lb (32 kg) Tow Truck Winch 20,000Lb X 100lb (45 kg) 66lb (30 kg) X X X X 25,000Lb X X X 68lb (31 kg) 104lb (47 kg) X X
Cable Data:Winch Type Cable Type Length Cable Size Grunter Boat Trailer Winches (All models) Positive (Power)
7m (~23ft) 50mm² Negative (Earth)
3m (~10ft) 32mm² Control Box Cables
Various <1m (< ~3ft) From winch to control box only. 25mm² Grunter Cable Upgrade (Postive cable only) Positive (Power)
10m (~32ft) 50mm² 4x4 Winches (All models)
Mustang, Colt, Steed, Mule, Brumby, Stallion, Tow Truck winch models.
Positive (Power)
1.8m (~6ft) 25mm² Negative (Earth)
1.8m (~6ft) 25mm² Control Box Cables
Various <1m (< ~3ft) From winch to control box only. 25mm² 4x4 Winch Cable Upgrade Positive (Power)
3m (~10ft) 25mm² Negative (Earth)
3m (~10ft) 25mm² Big Air - Air Compressors (All models) Positive (Power)
3m (~10ft) 16mm² Negative (Earth)
3m (~10ft) 16mm²
