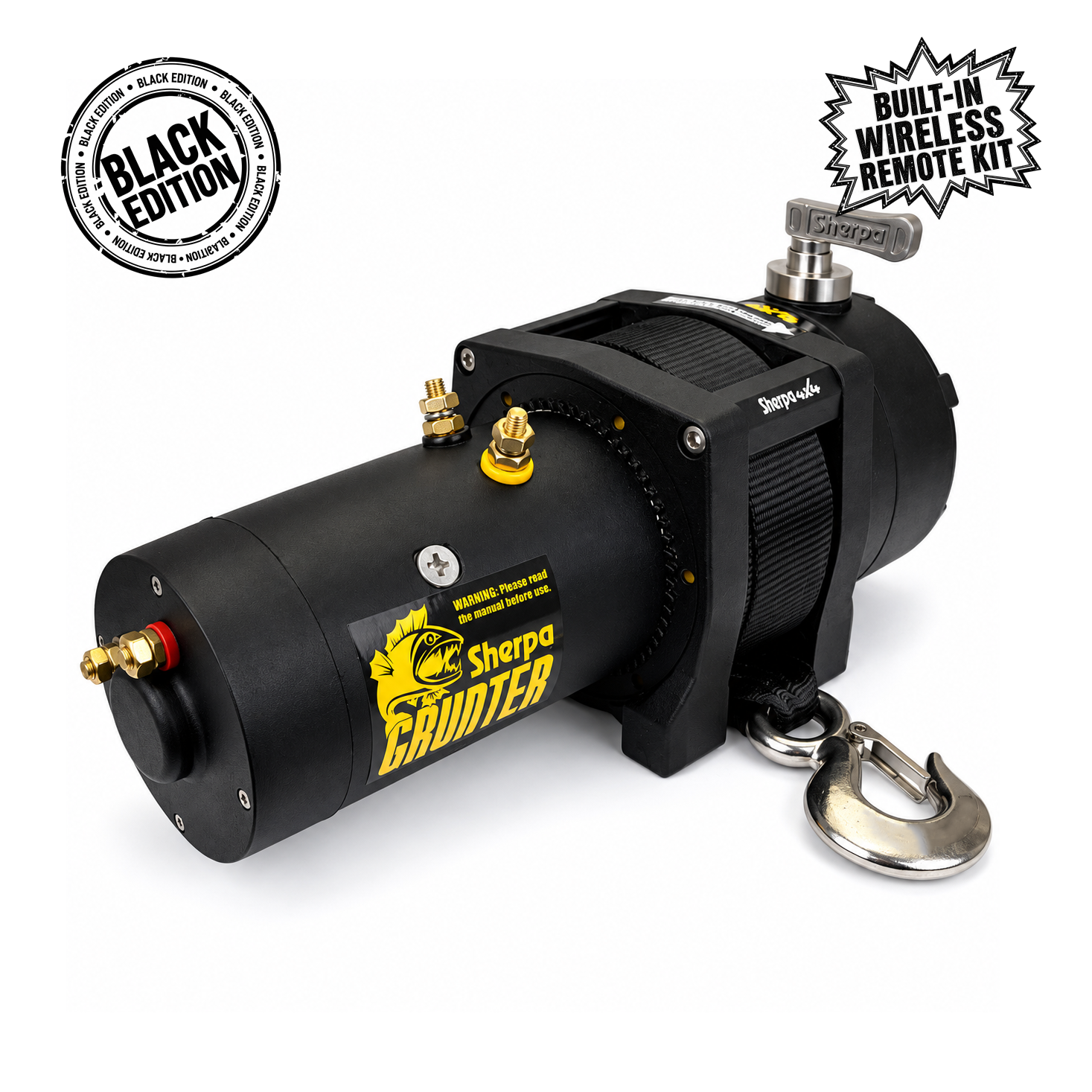

SBTW10000

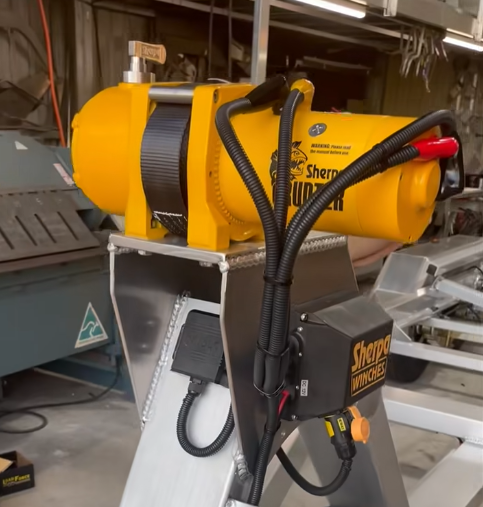

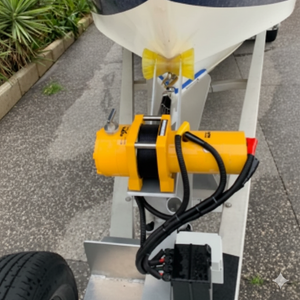

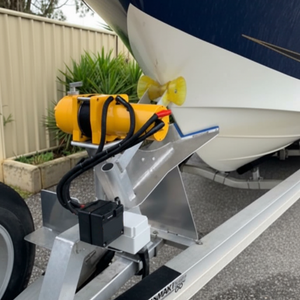

Finally a high quality and powerful trailer winch has been designed and built with the purpose task of winching boats and vehicles onto trailers. Not only are these winches fast and strong, but they also come with some exciting features which set them apart from anything else on the market.
This winch has been custom designed and built essentially for one operation, winching boats onto trailers. For years the world has been putting up with cheap and nasty Chinese winches which probably work for a small tinny, however quickly fail if your boat is a decent size and weight. Any half decent winches out there on the market are slow and just don't deliver value for money.
Sherpa 4x4 have used their extensive knowledge of the winch and hoisting industry to build a task specific boat trailer winch. This winch is different to anything else on the market and will outperform the competition. Designed to rival the homemade winches you sometimes see professional fisherman using with starter motors and large flywheels, the Sherpa winch delivers similar high performance from a compact, safe and low maintenance design.

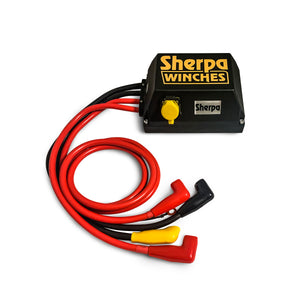

All Sherpa 4x4 winches come with genuine Albright solenoids! Incorporated into our electrics is a custom made version of the DC88P solenoid designed specifically by Albright International for the Sherpa 4x4 control boxes. With 70 years experienced in contactor design, these are by far the best winch solenoids available. Capable of handling up to 800 amps, almost twice the maximum capacity of the winch. Contact plating is second to none, increasing the duty cycle over other winches. As seen in our water submersion testing videos the Albright solenoids can be run for significant time under water without moisture ingress. The cheap Chinese solenoids used in the majority of winches will fail under extreme conditions and under high amperage load.
Specifications | Value |
---|---|
Rating |
Boats weighing up to 4,500 kg HP model - Boats 4,500 kg to 9,000 kg |
Vertical Lift Capacity |
4,545 kg (10,000lb) HP model - 7,200 kg (17,000lb) |
Motor | 6.6hp series wound (12V or 24V options) |
Gears | Power In, Power Out and free spool |
Gear reduction ratio | 3 stage planetary gearbox |
Rope/Cable |
10m of heavy duty 50mm webbing strap rated to 11,000lb |
Mounting Bolt Diameter | 11.2mm |
Drum Size (Dia x Length) | 64mm x 50mm |
Mounting Bolt Pattern | 87mm x 114.3mm |
Weight |
|
Clutch | 180 degree turn, free spooling, slide ring gear |
Brake | Electric in motor |

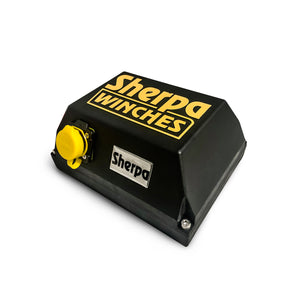

Solenoid | Albright International Heavy Duty 800 amp mounted in control box |
Duty Cycle | Intermittent |
Inclusions |

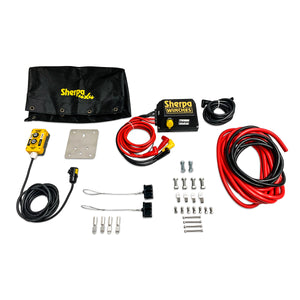

Includes ample electrical cable to run from engine bay to tow bar on a Toyota Landcruiser 200 series. Includes heavy duty plug set from vehicle to trailer Control Box Waterproof wired hand remote Winch and control box mounting hardware and brackets |
Water Ingress Rating | IP68 |
Warranty | 5 Years |
Line Pull (Lb) | Line Speed (m/min) | Motor Current (A) |
---|---|---|
0 | 12.5 | 80 |
1000 | 8.6 | 125 |
2,000 | 7.3 | 185 |
4,000 | 4.7 | 245 |
6,000 | 3.7 | 325 |
8,000 | 2.8 | 375 |
10,000 | 2.1 | 425 |
HP Model specifications differ from above. Speeds ~half above figures and power ~double.
Grunter Boat Winch Owner's Manual
Winch Dimensions:
'Mustang' 9,500Lb with 28m spool
'Brumby' 10,000Lb high speed winch
'Steed' 17,000Lb with 28m spool
'Steed' 17,000Lb with 45m spool
'Mule' 17,000Lb dual motor winch with 45m spool
'Stallion' 25,000Lb winch with 30m spool
'Grunter' boat trailer winches (Standard & HP Models)
'Grunter' Boat Trailer Winch Mounting Bracket
ATV Winch 4,500Lb Mounting Plate
Wiring Diagrams:
Dual Motor Winch Wiring Diagram
Winch Weights:
Winch Type | Other | 92ft (28m) Cable | 92ft (28m) Rope | 100ft (30m) Rope | 100ft (30m) Cable | 148ft (45m) Cable | 148ft (45m) Rope |
ATV Winch 4,500Lb | 15lb (7 kg) | X | X | X | X | X | X |
9,500Lb | X | 57lb (26 kg) | 42lb (19 kg) | X | X | X | X |
10,000Lb (High Speed) | X | X | 50lb (23 kg) | X | X | X | X |
12,000Lb | X | 66lb (30 kg) | 50lb (23 kg) | X | X | X | X |
17,000Lb Single Motor | X | 60lb (30 kg) | 50lb (23 kg) | X | X | 88lb (40 kg) | 57lb (26 kg) |
17,000Lb Dual Motor | X | X | X | X | X | 101lb (46 kg) | 71lb (32 kg) |
Tow Truck Winch 20,000Lb | X | 100lb (45 kg) | 66lb (30 kg) | X | X | X | X |
25,000Lb | X | X | X | 68lb (31 kg) | 104lb (47 kg) | X | X |
Cable Data:
Winch Type | Cable Type | Length | Cable Size |
Grunter Boat Trailer Winches (All models) |
Positive (Power) |
7m (~23ft) | 50mm² |
Negative (Earth) |
3m (~10ft) | 32mm² | |
Control Box Cables |
Various <1m (< ~3ft) From winch to control box only. | 25mm² | |
Grunter Cable Upgrade (Postive cable only) |
Positive (Power) |
10m (~32ft) | 50mm² |
4x4 Winches (All models) Mustang, Colt, Steed, Mule, Brumby, Stallion, Tow Truck winch models. |
Positive (Power) |
1.8m (~6ft) | 25mm² |
|
Negative (Earth) |
1.8m (~6ft) | 25mm² |
Control Box Cables |
Various <1m (< ~3ft) From winch to control box only. | 25mm² | |
4x4 Winch Cable Upgrade |
Positive (Power) |
3m (~10ft) | 25mm² |
Negative (Earth) |
3m (~10ft) | 25mm² | |
Big Air - Air Compressors (All models) |
Positive (Power) |
3m (~10ft) | 16mm² |
Negative (Earth) |
3m (~10ft) | 16mm² |
